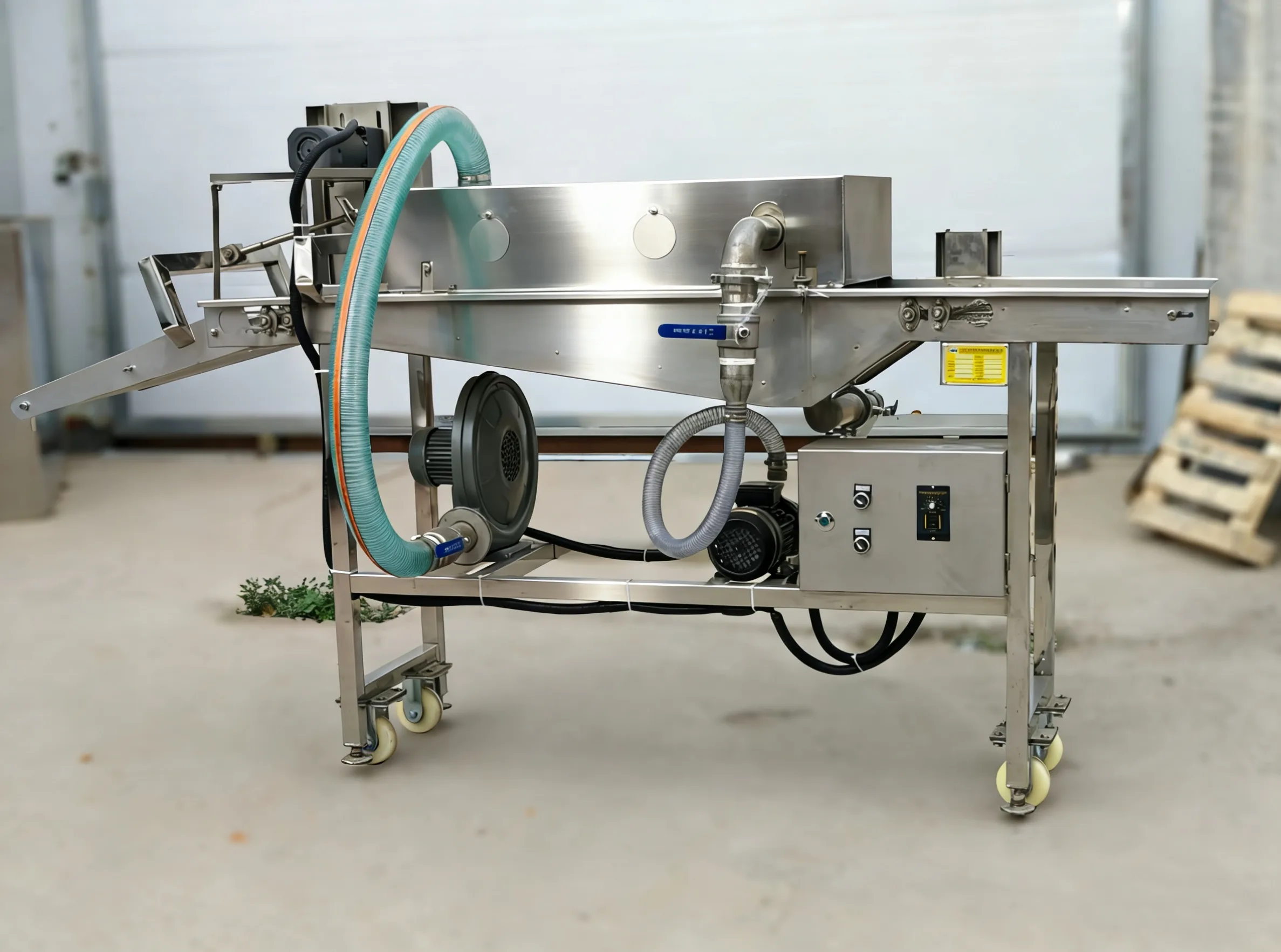

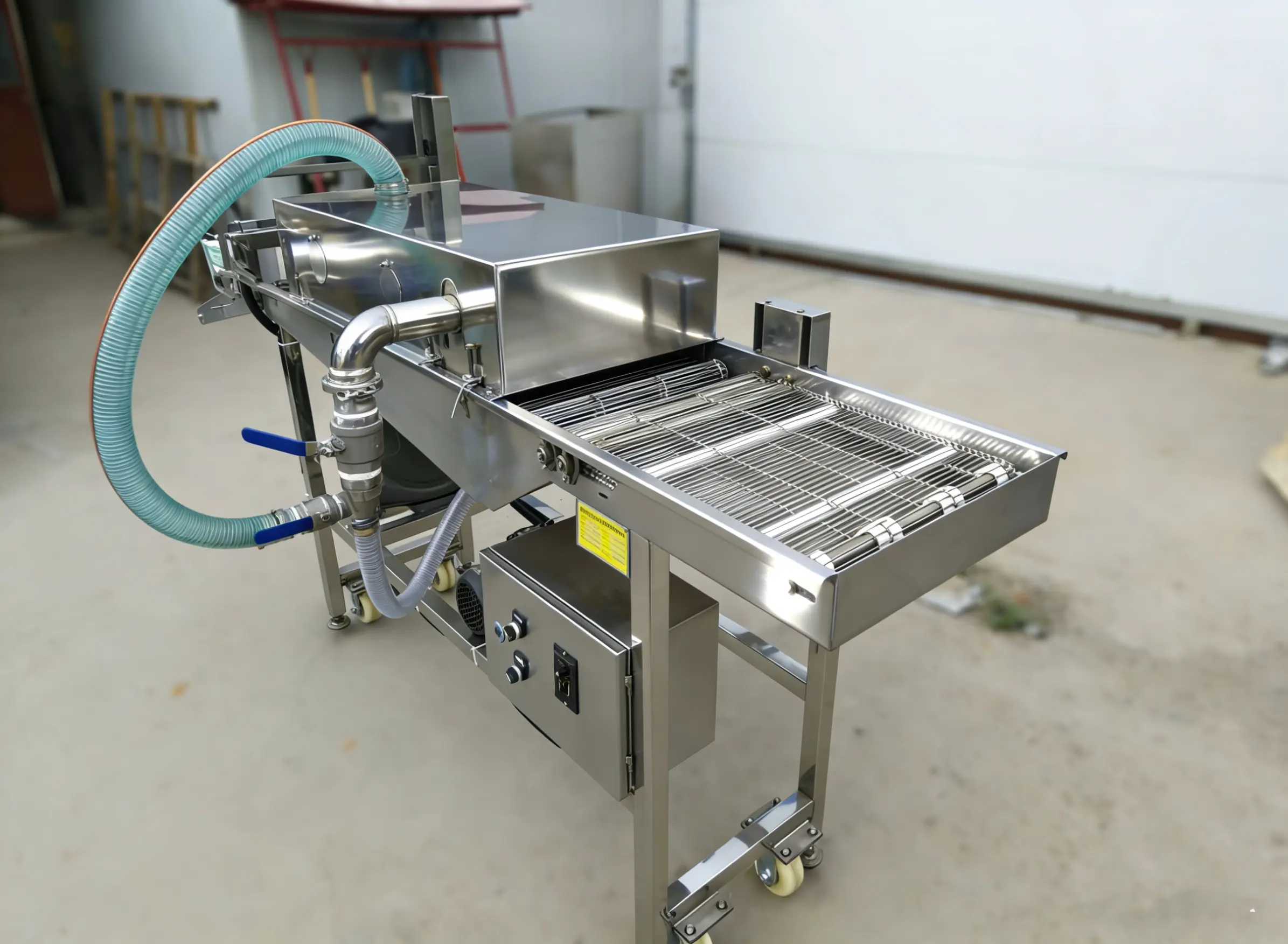

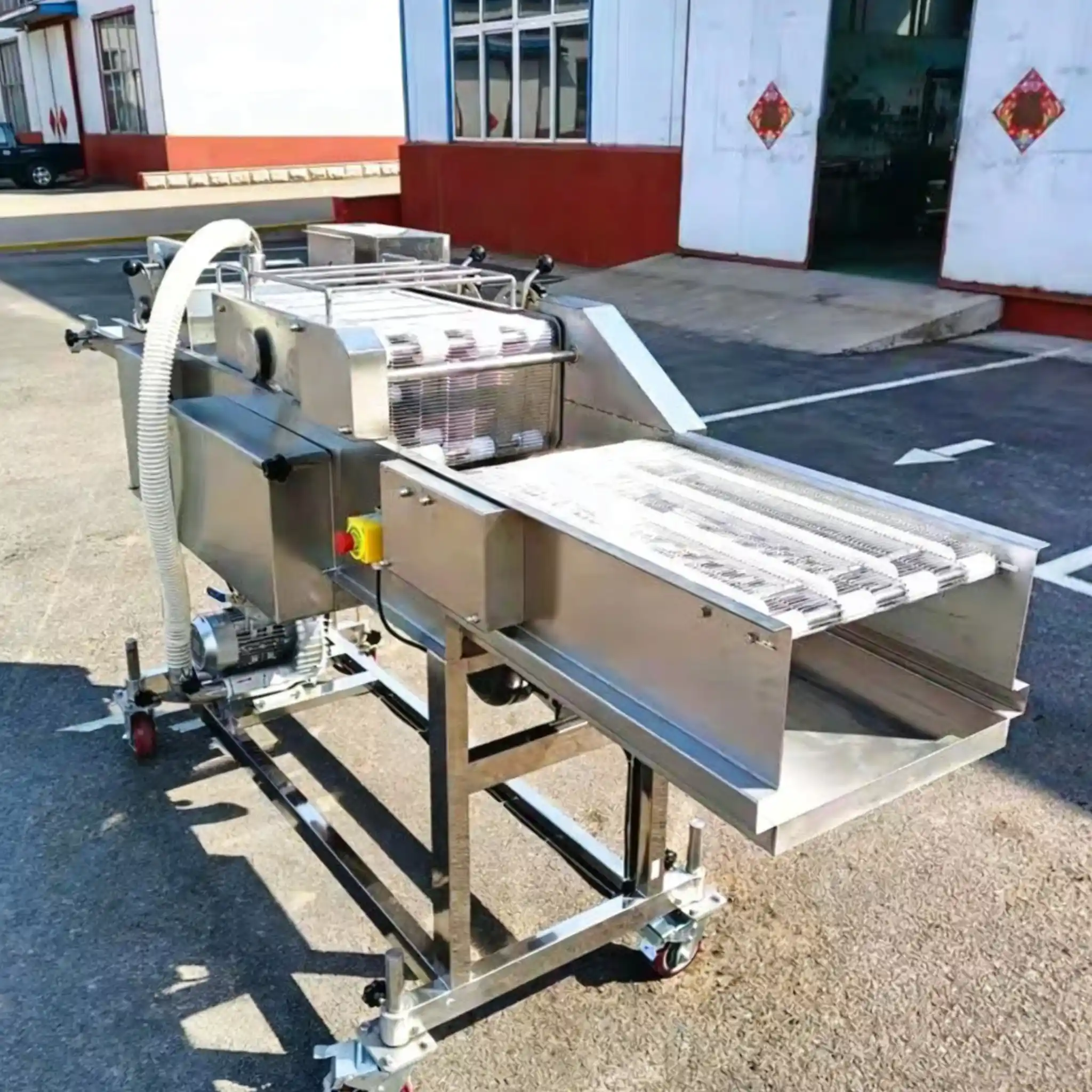

Stop throwing away profit on inconsistent hand-coating. Forged to survive the 35°C heat and 85% humidity of Southeast Asian food plants, the BBM-600 Automatic Battering and Breading Machine Line delivers a flawless, uniform coating for Ayam Geprek, Tempeh, and frozen patties. We stripped out the fragile components found in standard imports. Shrouded mechanical seals survive brutal high-pressure washdowns, while an optimized auger pitch kills crumb bridging dead.
The Bottom Line for Your Factory:
Stop throwing your profit margin down the drain with uneven coating. An Automatic Battering and Breading Machine line is an industrial continuous processing system that applies liquid batter and solid crumbs to food products via a mechanized wire belt and pump system. If you run a food plant in Jakarta or Surabaya, you already know the nightmare of manual coating in 35°C heat with 85% humidity. The heat destroys your batter viscosity. The humidity clumps your breadcrumbs.

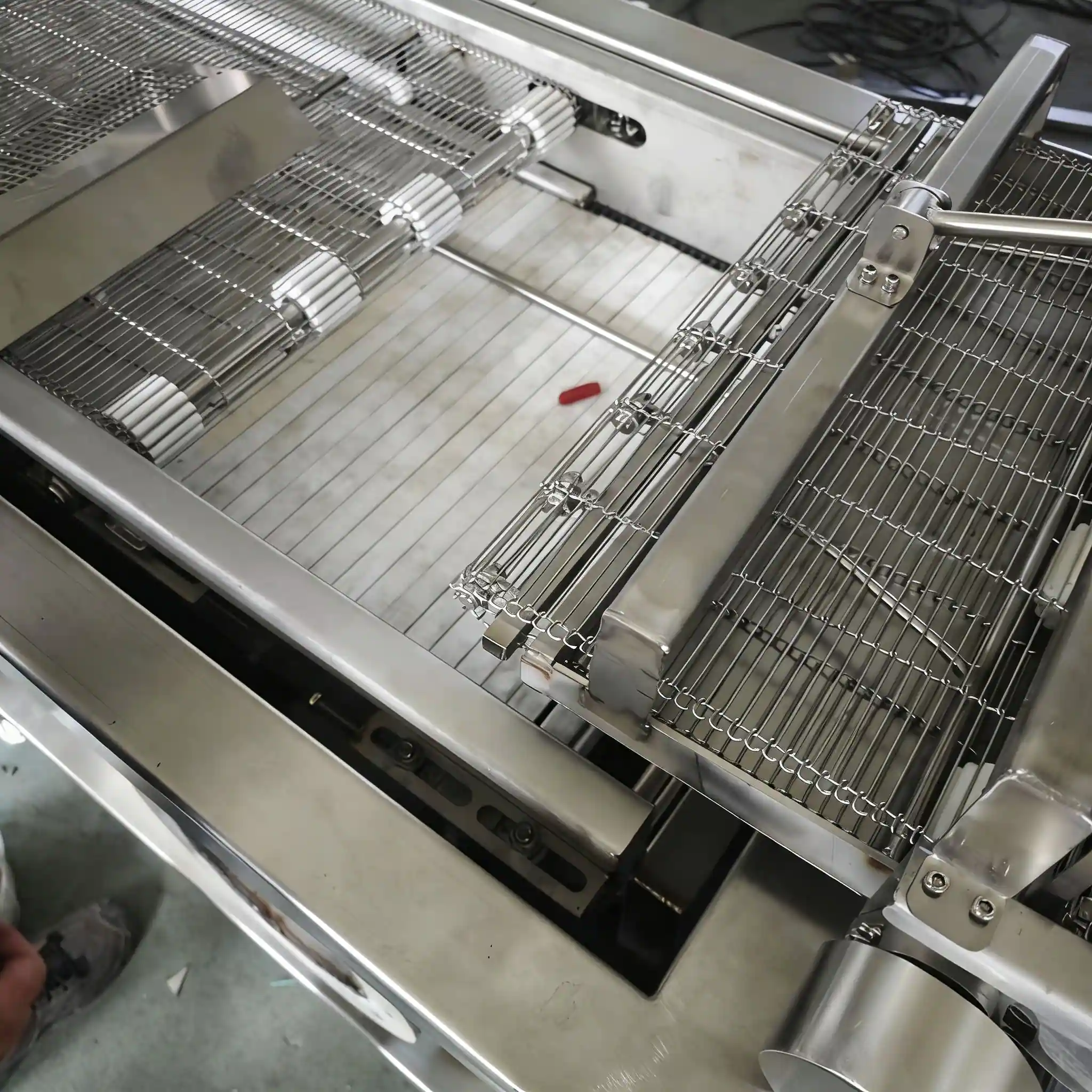

This line takes your raw chicken cuts, passes them through a controlled liquid curtain, and beds them in breadcrumbs without human interference. That’s the baseline. Don’t believe the ads promising miracles. Good engineering is about controlling variables on the factory floor.
Before we talk about features, let’s look at the actual hardware. Here is the standard data for our 600mm belt-width model, configured specifically for Southeast Asian electrical grids.
| Parameter | Specification | Engineering Note for SEA Market |
|---|---|---|
| Model | BBM-600 | Fits standard medium-to-large processing lines. |
| Capacity | 500 – 800 kg/h | Depends heavily on product density (e.g., Tempeh vs. Chicken). |
| Belt Speed | 3 – 15 m/min | VFD controlled to match your fryer’s pace. |
| Power & Voltage | 4.5 kW | 380V / 50Hz | 3-phase. Built to handle local grid voltage fluctuations. |
| Dimensions | 3200 x 1100 x 1500 mm | Requires at least 1.5m clearance on sides for washdown. |
| Material | SUS304 Stainless Steel | Food-grade. Resists stress corrosion cracking from salt. |
Note: These parameters represent the true continuous running capacity, not the theoretical max speed that burns out motors.
I’ve spent 15 years fixing food machinery across Java and Sumatra. Most imported machines look great in a showroom but die in a real factory. Here is how we build them to survive.

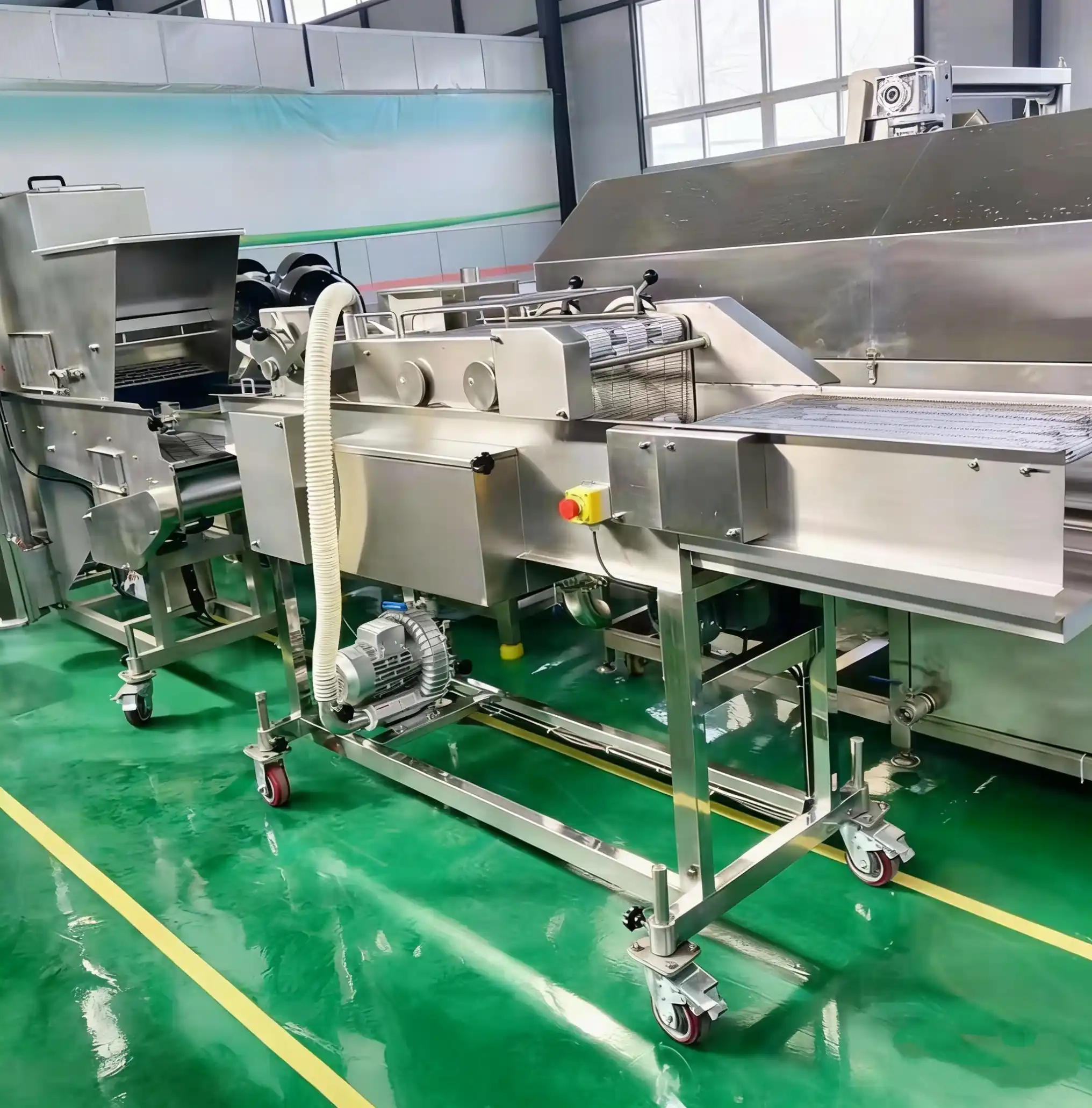

In high-humidity environments, breadcrumbs absorb moisture and bridge in the hopper. The screw pitch on our auger is optimized to break up clumps before they reach the lower bed. The advantage? You get a consistent bottom layer of crumbs for your Ayam Geprek or Pisang Goreng. The benefit is simple: zero bald spots on your fried products and a drastic reduction in crumb waste.
When processing frozen chicken fillets for Ayam Geprek, actual output jumped from 620 kg/hr to 815 kg/hr. It sounds marginal, but running two 8-hour shifts means an extra 3.1 tons of finished product per week. This is real money.

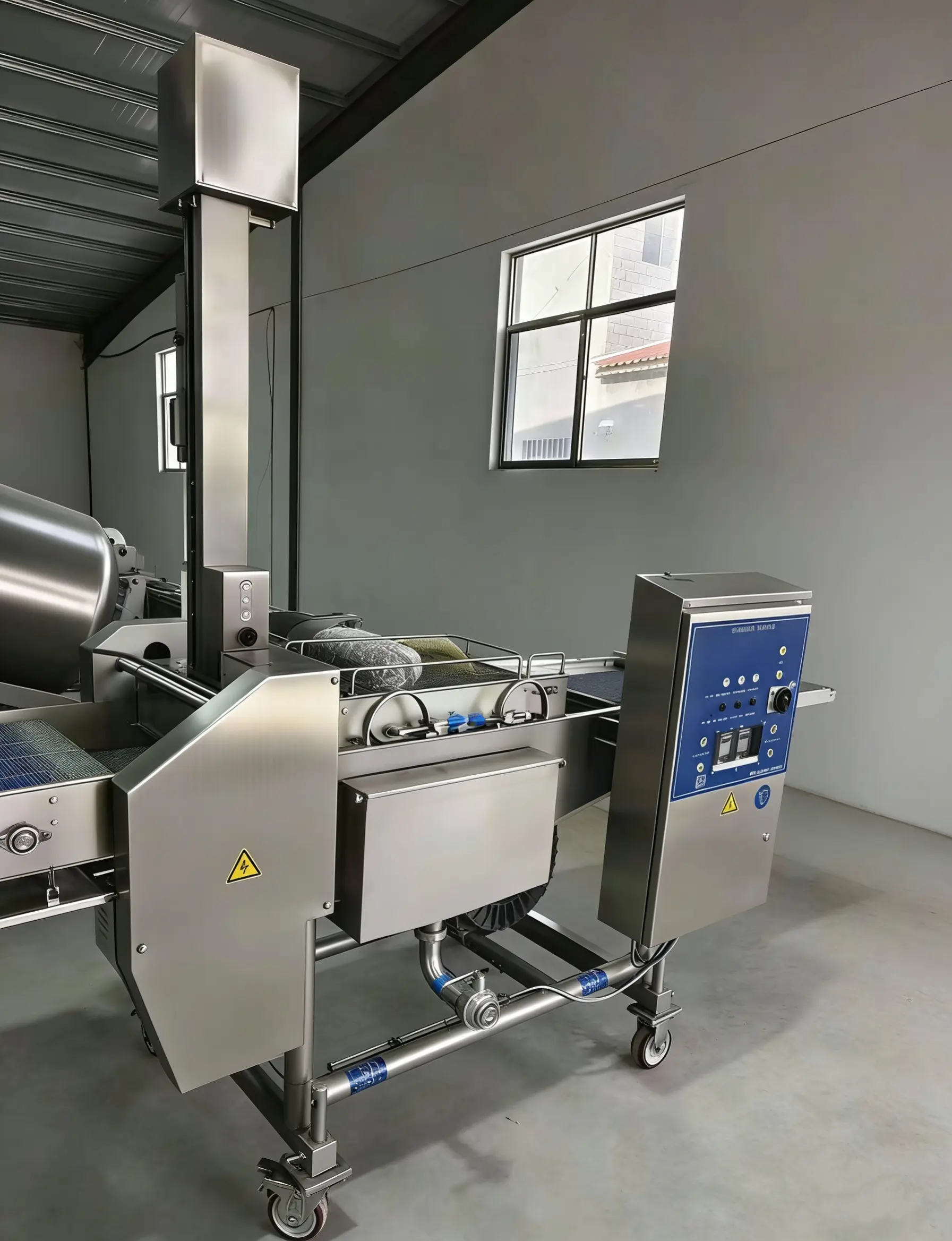

Batter heats up when pumped continuously. We keep the batter pump’s temperature rise under 3°C. If your batter gets too warm, it thins out. Thin batter means thin coating. Thin coating means your meat shrinks in the fryer.
Salesmen will give you a list of features. I’m going to give you the facts, along with the dirty little secrets of the food processing floor.
It takes two operators about 25 minutes. The wire belt lifts via a pneumatic hoist. You don’t need tools to remove the batter pump or the crumb auger. If a machine requires a wrench to clean, your workers simply won’t clean it properly.

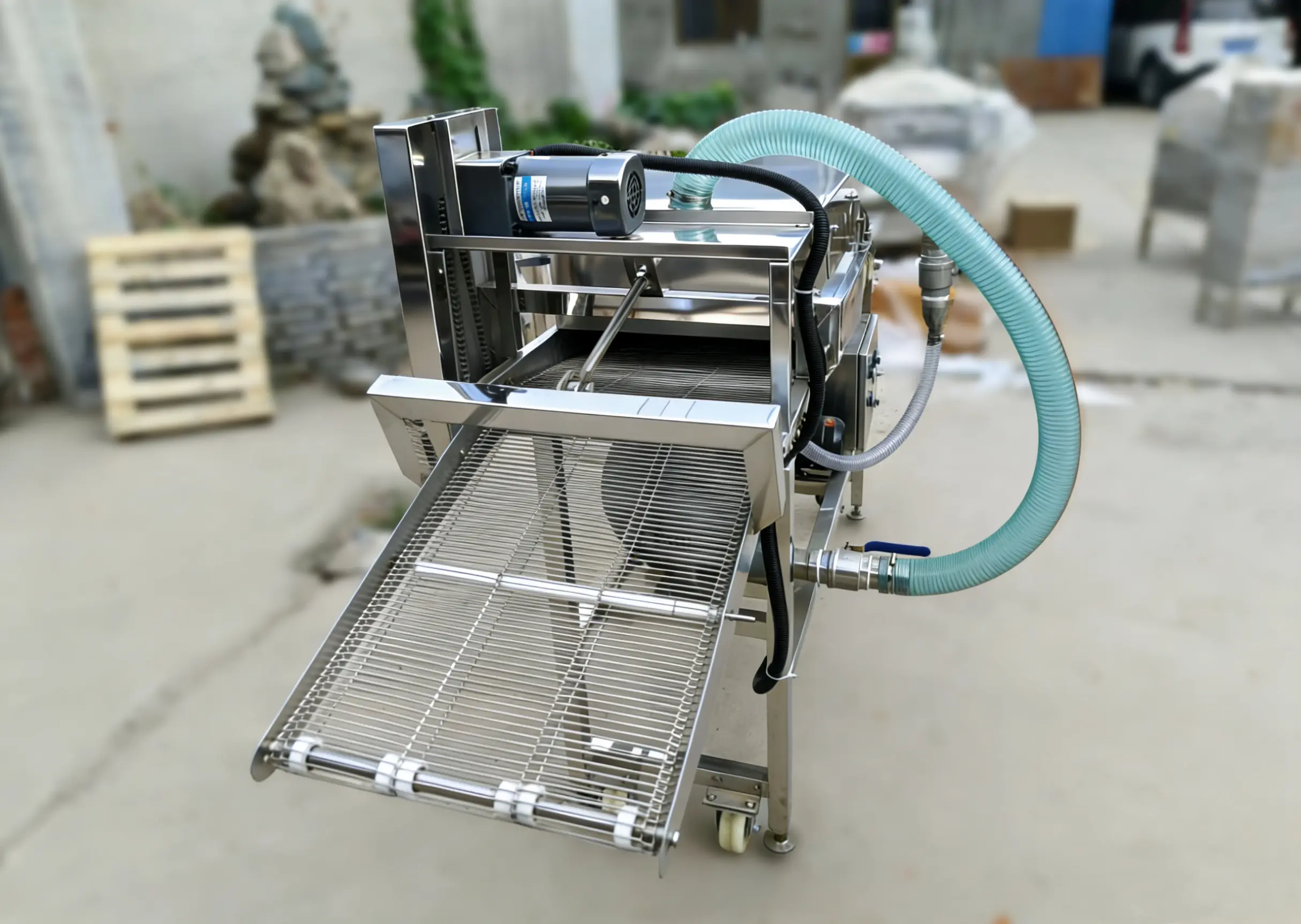

Yes. The clearance between the upper and lower wire belts is adjustable. The batter curtain pump is designed to handle high-viscosity liquids without clogging, which is critical for the thick batter used in traditional Indonesian fried snacks.
We use standard international components for the electrical box (Siemens/Schneider) and standard metric bearings. You can buy replacements in any major hardware market in Jakarta or Surabaya. You are never held hostage waiting for proprietary parts from overseas.
