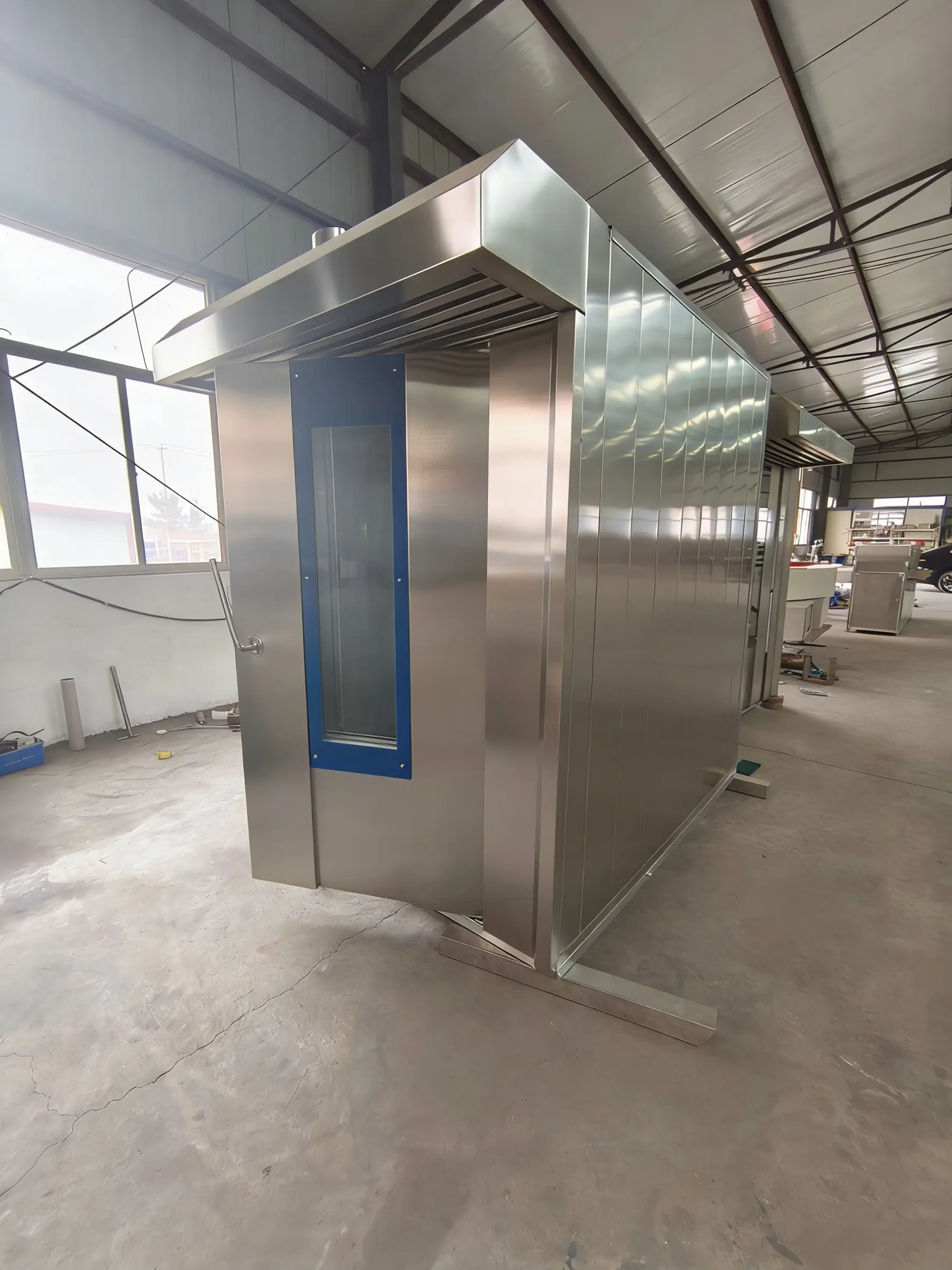

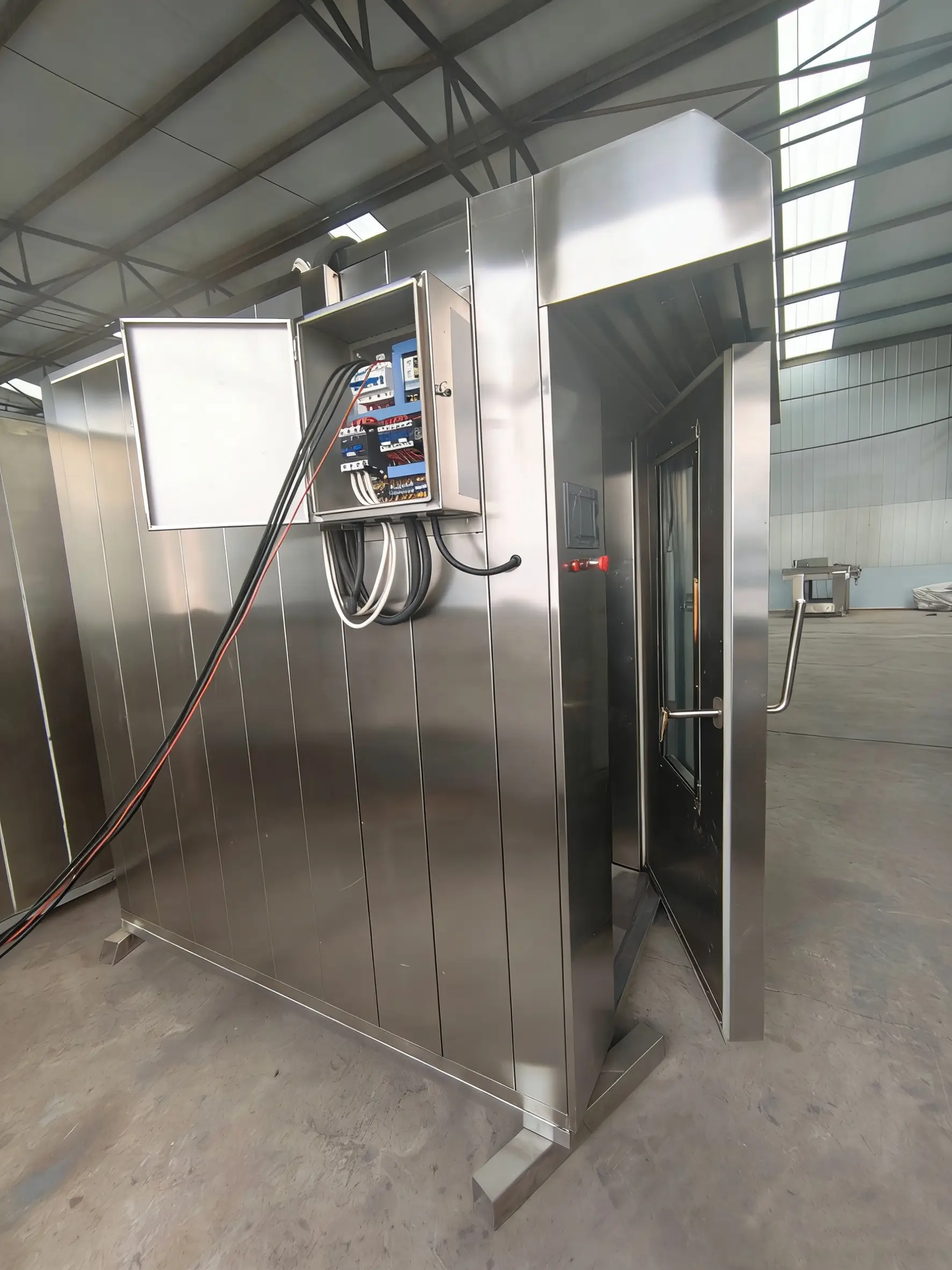

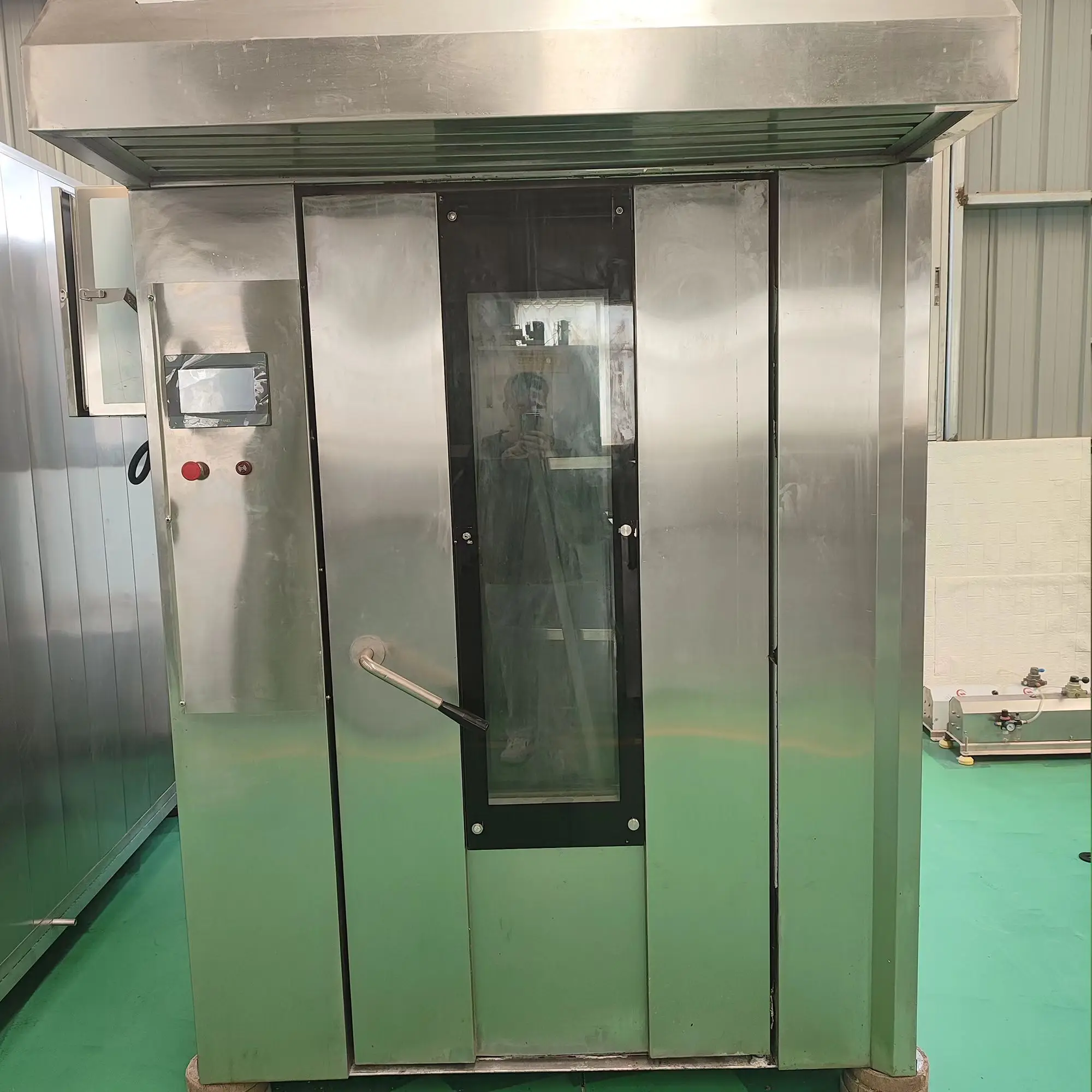

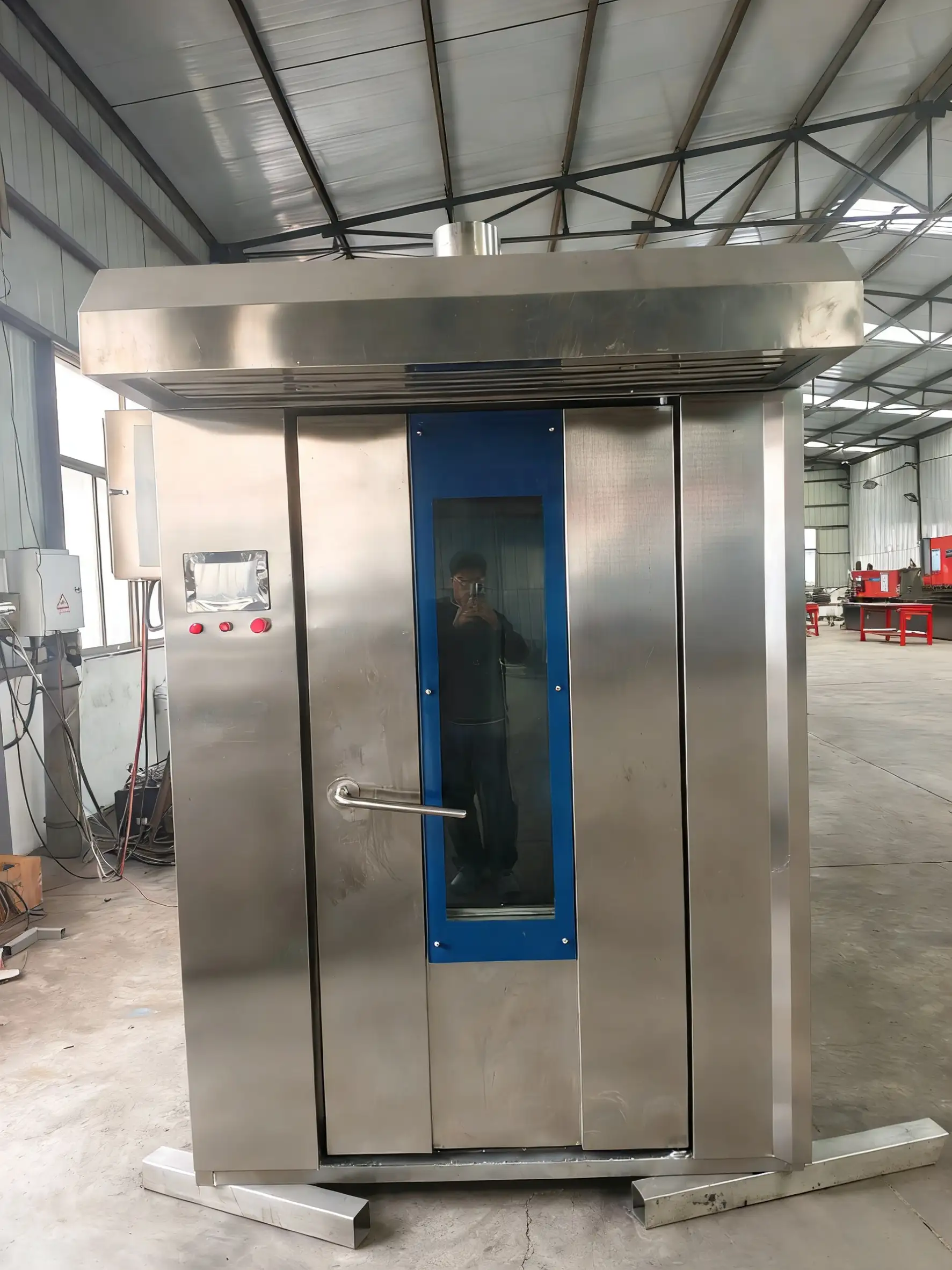

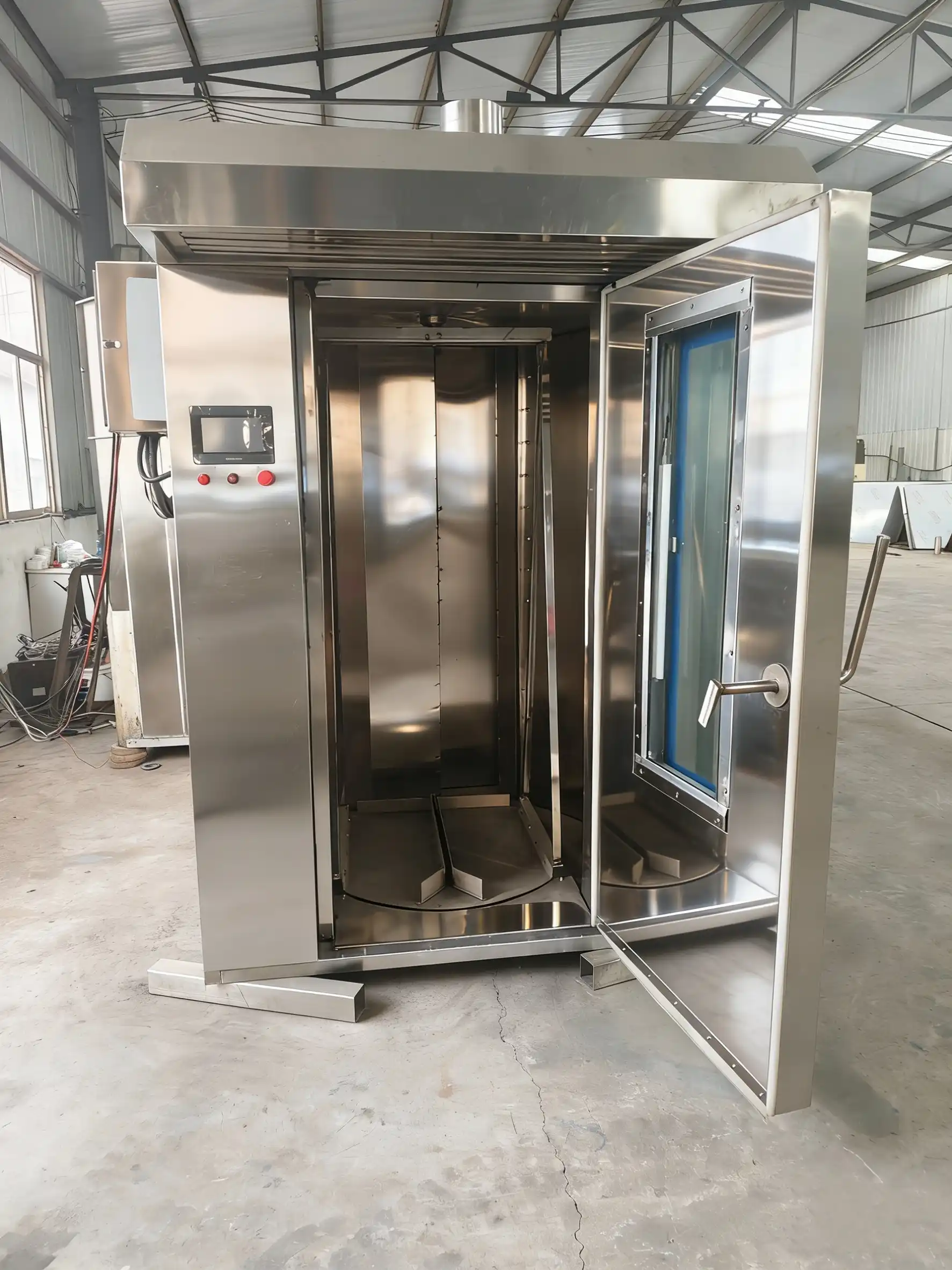

End Uneven Roasting Forever | Industrial hot air circulation baking oven

Stop watching your workers manually rotate baking trays every hour just to prevent the back row from burning while the front row stays raw. An industrial hot air circulation baking oven is a closed-loop thermal processing system that uses high-velocity centrifugal fans to force heated air through a precisely engineered duct matrix, stripping moisture and baking food at a relentless, constant rate. If you are running a Khô bò (beef jerky) or Hạt điều rang (roasted cashew) facility in Binh Duong, you know exactly the nightmare I am talking about. The 90% ambient humidity fights your drying process every single minute. Cheap ovens just bake the air in a static metal box. The moisture has nowhere to go. Your jerky case-hardens on the outside but rots from the inside out.

This machine fixes thermal distribution with pure aerodynamic force. Don’t believe the salesmen pushing “smart touchscreen” ovens. At the end of the day, if you don’t solve the volumetric airflow and thermal bridging in the cabinet walls, all that 72kW of heating power is completely wasted.

📊 Technical Specifications: The Numbers That Matter

Don’t just look at the “Number of Trays.” You need to look at the Heating Power relative to the Chamber Volume. A weak heater trying to push 400°C in a 64-tray oven will take three hours just to preheat. Here is the real data for our ZY-series, configured specifically for the Southeast Asian heavy industrial grid.

Engineer’s Warning: These ovens pull massive amperage (up to 72kW). You must have a dedicated 3-phase industrial transformer. Do not attempt to wire this into a standard commercial storefront grid.

⚙️ Core Engineering: Why Most Ovens Fail in Vietnam

I’ve spent 20 years fixing thermal processing lines across Ho Chi Minh City and Dong Nai. Most imported ovens look beautiful in a showroom but destroy your yield in a real factory. Here is how we build them to survive.

Aerodynamic Baffling and the Yield Trap

Let’s talk about laminar flow. When you push 400°C air over 64 trays of wet marinated beef, the air cools down as it travels from the bottom tray to the top. Cheap ovens don’t compensate for this. The bottom trays burn; the top trays stay wet. We use adjustable 304 SS aerodynamic louvers on the interior side walls. You can physically tune the air pressure hitting each specific tier.

The advantage? Absolute moisture uniformity. When drying 5mm thick Khô mực (marinated dried squid), actual Grade-A yield went from 81% to 94.5%. It doesn’t look like a massive leap on paper, but in a double-shift operation, you are saving exactly 180 kg of premium squid from being downgraded to pet food every single week. This is pure operational leverage.

The Thermal Leak and Door Seal Death

Say it with me: if you don’t protect the door perimeter, your heat escapes, and your electricity bill skyrockets. When your workers slam the oven door shut, cheap silicone seals compress and permanently deform at 300°C. Heat leaks out the top right corner, condensing into acidic water droplets that drip onto your control panel and short out the motherboard. We use braided, fiberglass-reinforced high-temperature silicone gaskets that withstand 400°C continuous compression without losing their memory. ——these are the basic bottom lines in the 2026 industry standards.

🛠️ Industry Facts & The “Unspoken Rules”

Salesmen will hand you a list of generic features. I’m going to give you the engineering facts, along with the dirty little secrets of the commercial baking floor.

• Fact: 100% 304 Stainless Steel Interior and Exterior.
  • The Unspoken Rule: Competitors use 304 SS for the visible walls but hide cheap galvanized steel inside the air circulation ducts. Within 3 months of venting humid, salty food vapor, the internal ducts rust, flaking oxidized metal dust directly onto your food. We use 304 SS for every single internal airflow component.
• Fact: 2.5kW Dynamically Balanced Centrifugal Fan.
  • The Unspoken Rule: Aluminum fan impellers warp when constantly exposed to 400°C heat. Once they warp, the fan vibrates violently, eventually shattering the motor bearings. We strictly use heavy-duty stainless steel impellers, dynamically balanced to eliminate high-speed vibration.
• Fact: High-Density Aluminum Silicate Insulation.
  • The Unspoken Rule: Cheap ovens use standard fiberglass wool. Over two years of constant factory vibration, cheap fiberglass sags to the bottom of the wall panels, leaving the top of the oven completely uninsulated. We pack our walls with rigid aluminum silicate blocks that never settle.

❓ FAQ: What Factory Owners Actually Ask Me

1. How do I clean the inside of the oven after roasting marinated meats?

The interior is fully seam-welded 304 SS with curved corners. You can roll the trolleys out and pressure wash the interior walls. However, never spray water directly into the centrifugal fan housing at the top. Use a damp cloth for the fan blades to prevent water from reaching the motor windings.

2. Can it reach 400°C quickly?

Yes. The ZY-200 uses a massive 72kW heating matrix. In an empty chamber, it ramps from 30°C to 400°C in under 25 minutes. However, when loaded with 200kg of wet product, the ramp time depends entirely on the moisture evaporation rate of your food.

3. Are the baking trays included?

Yes. We include the standard 400*600mm 304 SS trays and the heavy-duty rolling trolleys. You don’t need to source custom racks. If you are drying sticky fruits, we highly recommend lining the trays with food-grade Teflon mesh mats to prevent tearing the product during removal.
