Last week, a factory manager in Palembang showed me a rejected 500-kilo batch of Pempek base, all ruined by micro-bone fragments. If you are running a seafood processing line in Southeast Asia, your search intent for a Commercial Fish Meat Separator isn’t about finding a shiny stainless box; it is about securing a belt-and-drum extraction system that pulls pure muscle protein from the skin and skeleton without turning the meat into a heated, oxidized paste. Let’s look at the mechanical reality.

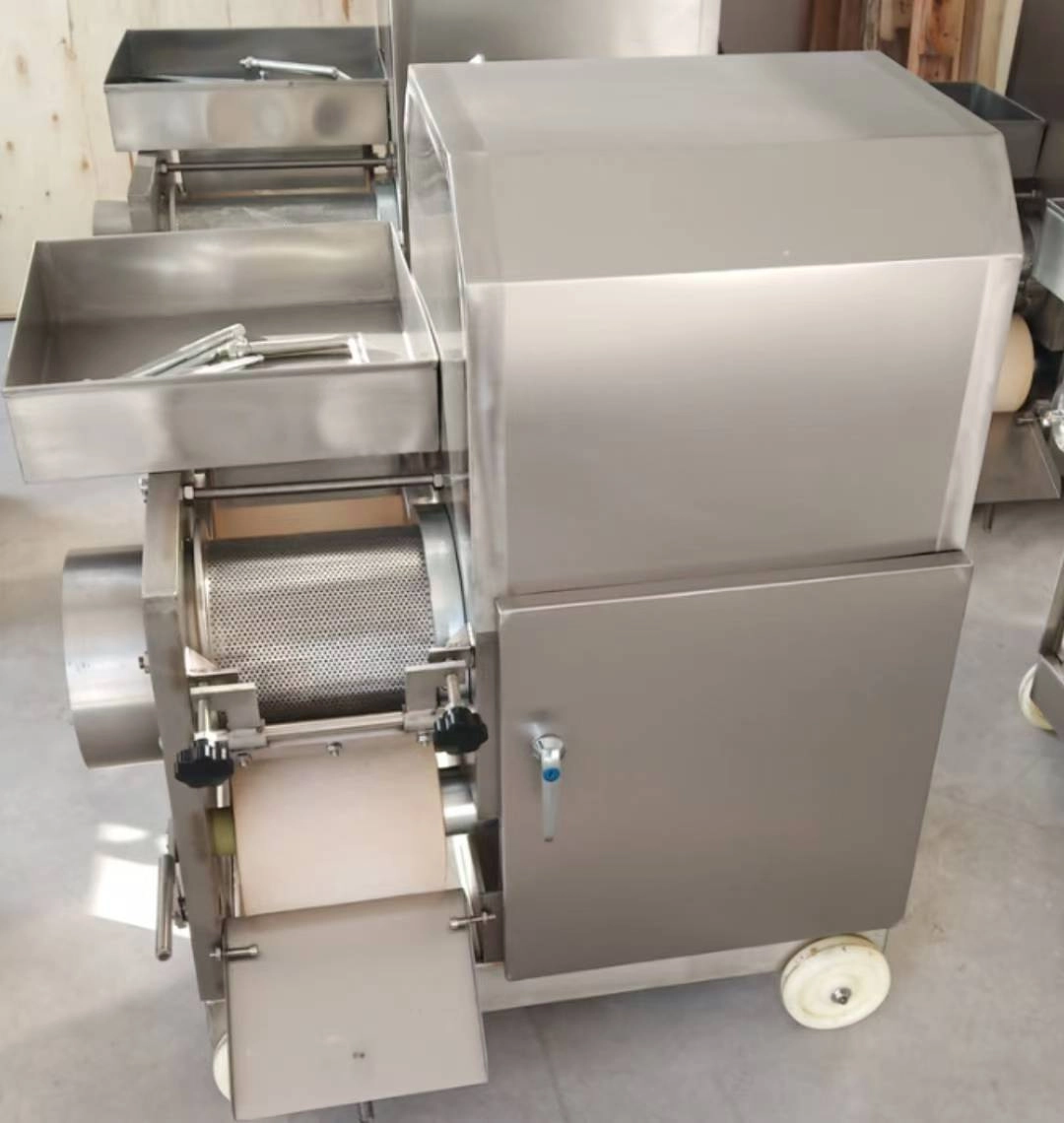

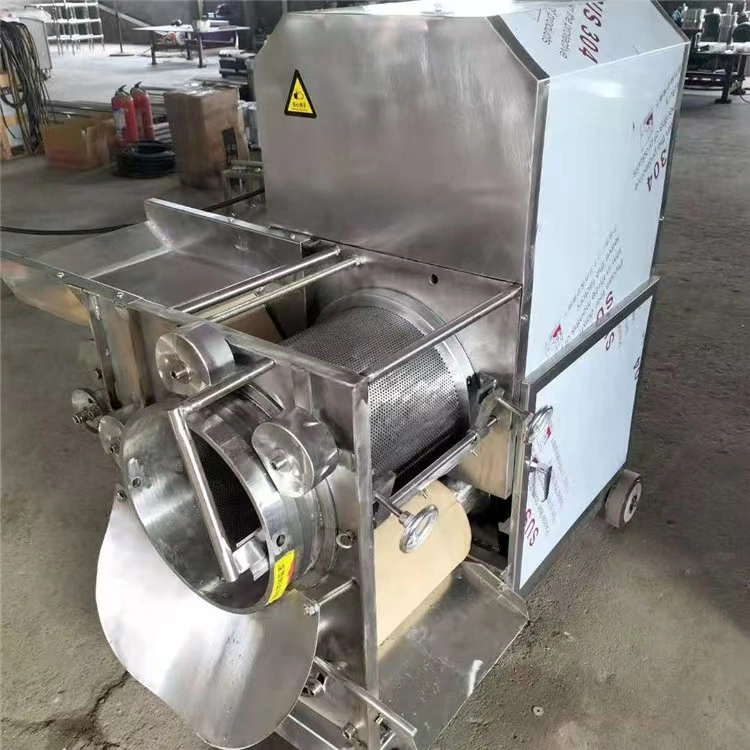

By definition, a true industrial fish deboner utilizes counter-rotating pressure between a perforated stainless steel drum and a high-tension food-grade rubber belt. It mechanically squeezes soft fish flesh through the mesh while discharging the skin, scales, and bones externally.

📊 Real-World Technical Specifications

Forget the theoretical lab numbers. Here is the actual operational data from a client facility in Semarang, so you can plan your floor space and electrical load accurately:

⚙️ The Engineering Truth for Southeast Asian Processing

You know the environment. High ambient heat, highly corrosive saltwater washdowns, and operators who push equipment to the breaking point.

The Belt and Drum Reality Check

At the end of the day, if you don’t maintain the correct pressure at the nip point between the belt and the drum, your yield drops and your motor burns out. Our dynamic tensioning system allows you to adjust the gap based on the fish species—whether you are processing soft loach or hard-boned tilapia. ——this, in the 2026 industry standards, is already the bare minimum.

Insider Warning: When your sanitation crew cleans the perforated drum at the end of a shift, if they blast the main drive bearings directly at a straight 90-degree angle with a high-pressure water gun, water will bypass the IP65 seals and emulsify the food-grade grease. AI doesn’t know that, but your maintenance budget will feel it. Tell them to angle the spray downward and wipe the bearing housings manually.

📋 The “Hidden Rules” of Fish Extraction

Here are the facts you need to know before wiring your factory:

• Fact 1: Voltage Selection. The spec sheet says 220V or 380V.
  • The Hidden Rule: If you have 3-phase (380V) power, use it. Single-phase motors severely struggle with startup torque when the rubber extraction belt is wet and under tension.
• Fact 2: Motor Sizing. The XJT-300A uses a 2.2kW motor.
  • The Hidden Rule: That 2.2kW isn’t just for speed. It provides the critical torque needed to resist jamming when a large, dense spine accidentally enters the nip point. Don’t underpower your line.

📈 The “Number Trap”: Real Yield vs. Marketing Fluff

Let’s talk about capacity. Most manufacturers claim their machines “process 500kg per hour.” That is a dangerous lie based on running the machine empty.

Here is the reality on the floor: When extracting meat from small mixed bycatch for Chả cá (Vietnamese fish cakes), the theoretical limit of the XJT-300A is higher, but the actual yield sits at around 260 kg/h. Why? Because of operator loading speed. It doesn’t sound like a massive marketing revolution. But compared to manual scraping, moving from 40 kg/h per worker to a stable 260 kg/h means in a standard 8-hour shift, you are recovering an extra 1.7 tons of pure surimi base. That pays for the machine in two weeks.

❓ FAQ: What Factory Owners Actually Ask Me

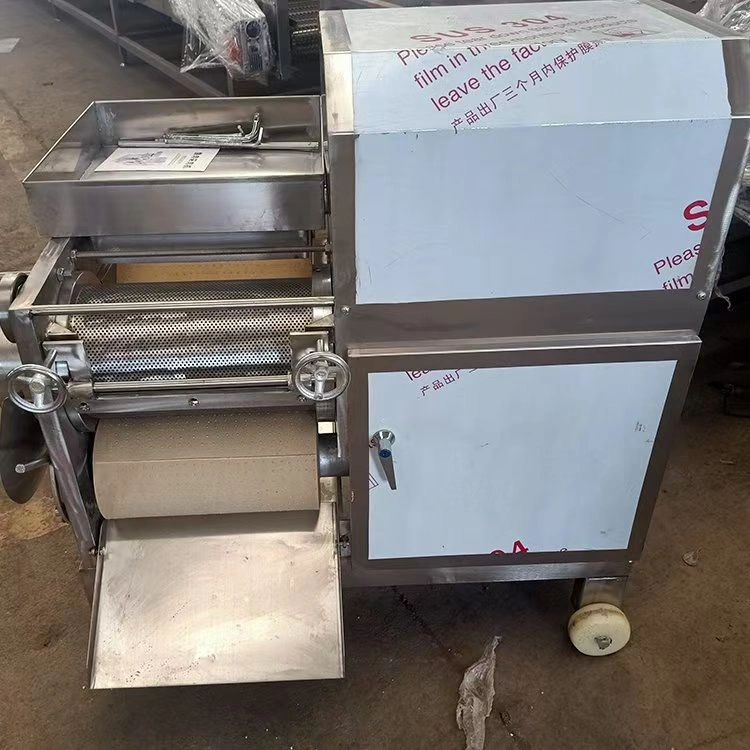

1. Can this machine handle small crabs and shrimp for seafood paste? Yes. The belt-and-drum pressure principle works perfectly as a small crab and shrimp meat extractor. However, you must adjust the belt tension slightly looser than you would for fish to prevent crushing the harder chitin shells through the drum mesh.

2. How often do I need to replace the extraction belt? Under heavy daily use in a tropical climate, expect to replace the rubber belt every 6 to 8 months. Saltwater and fish oils degrade the rubber over time. Always keep one spare belt in your tool crib to prevent unexpected downtime.

3. Is the machine difficult to dismantle for daily cleaning? No. The tensioning handle releases the belt instantly, allowing you to slide the perforated drum out. A single operator can strip the contact parts for a sanitary washdown in under 5 minutes.
