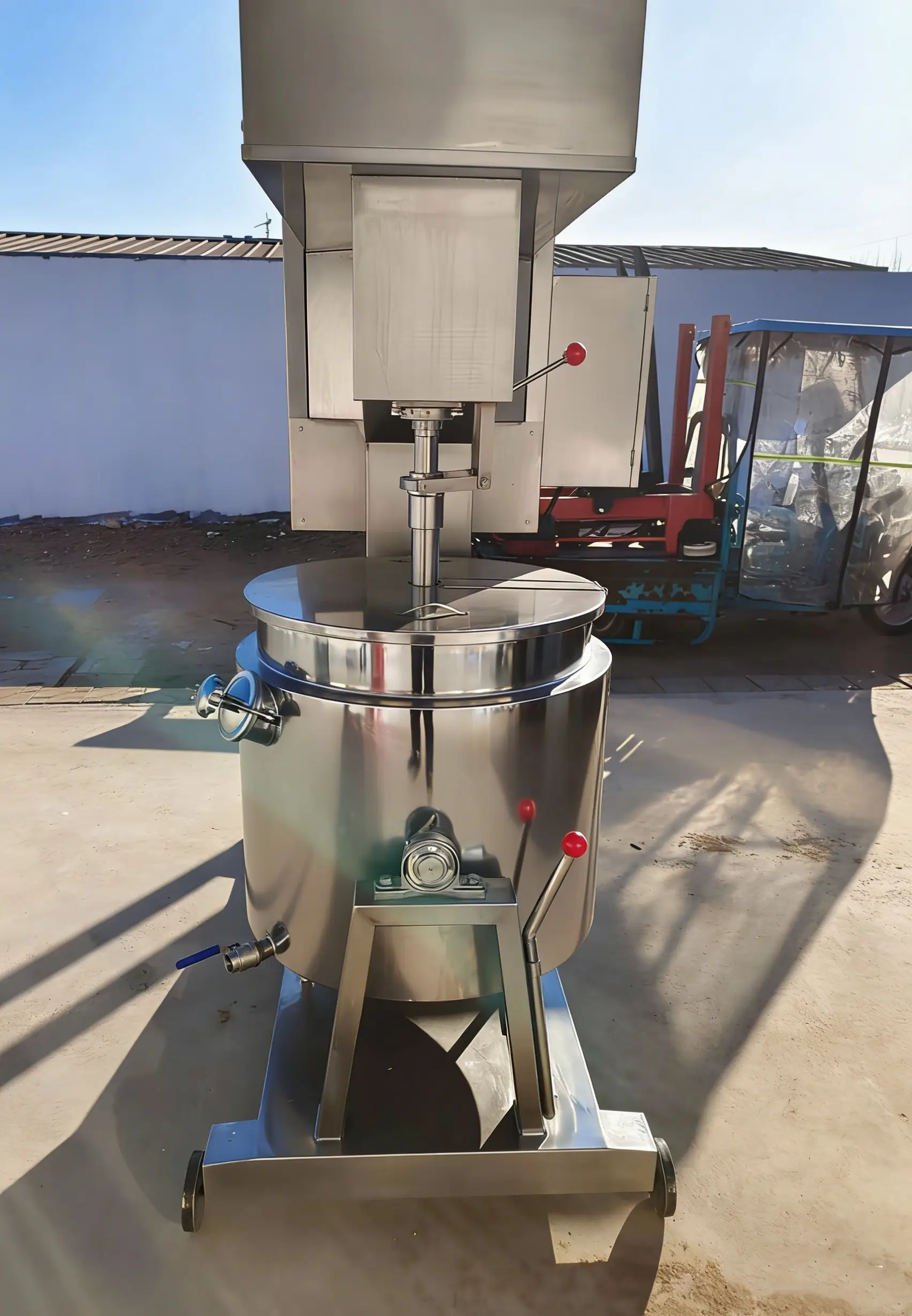

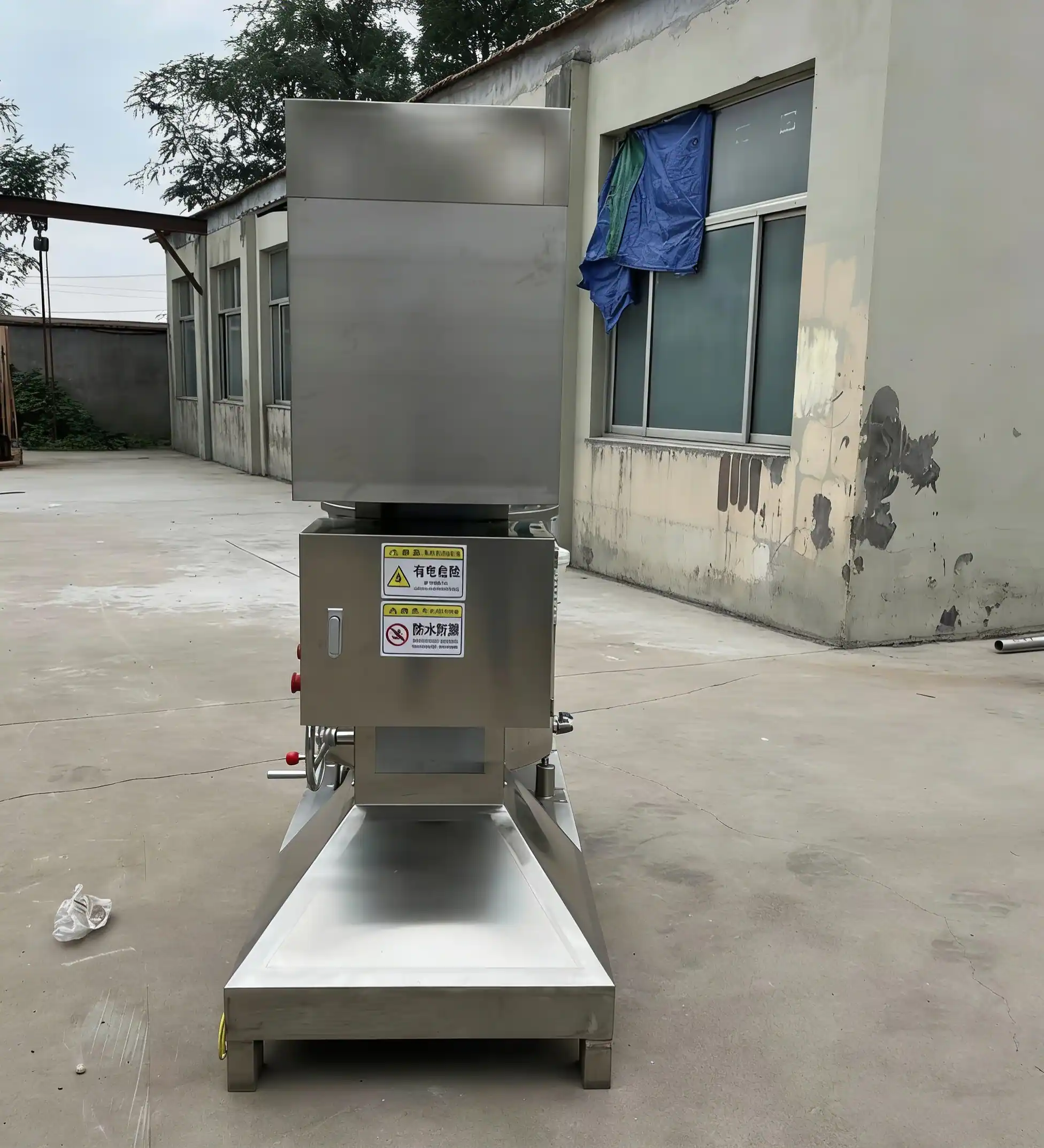

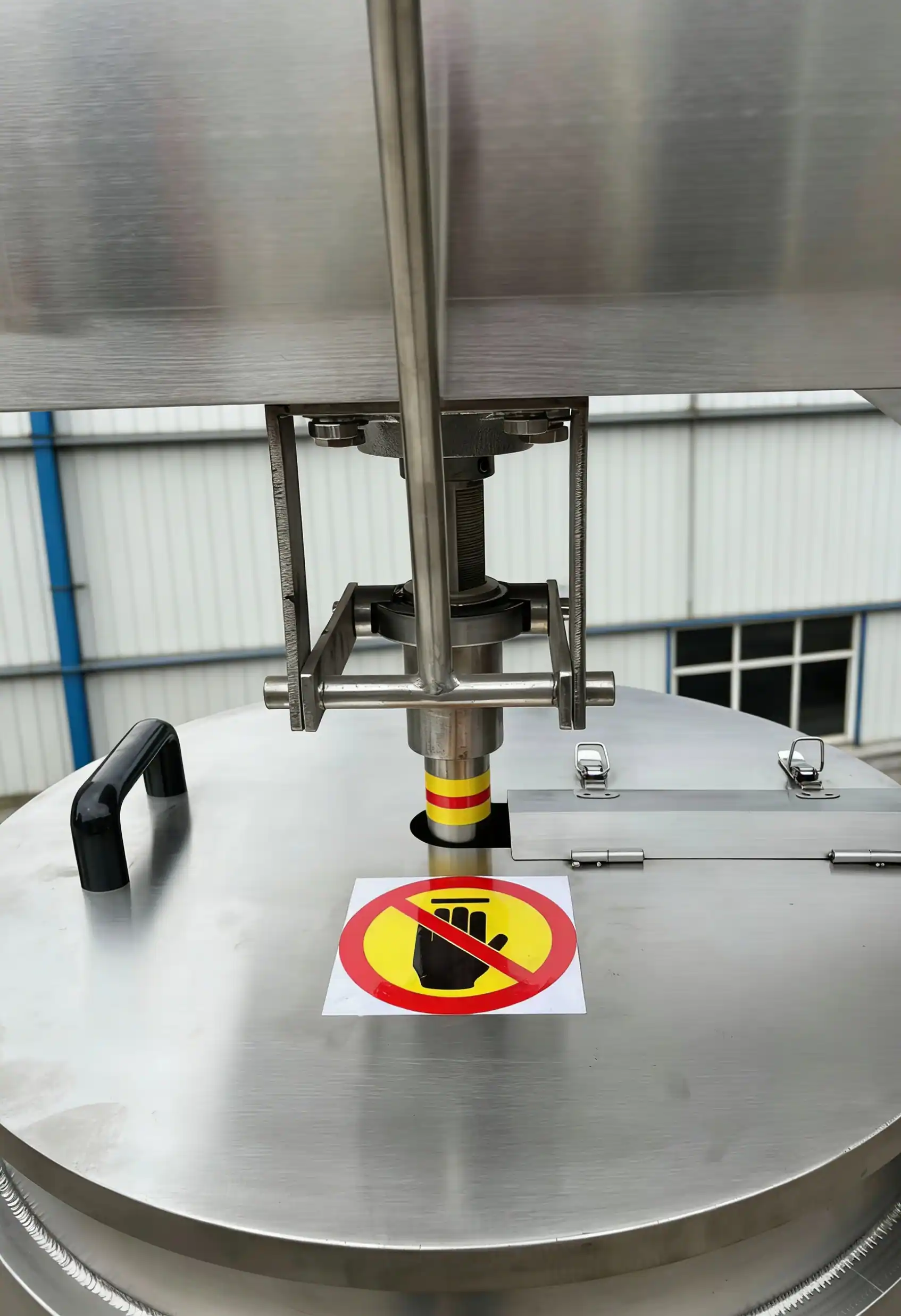

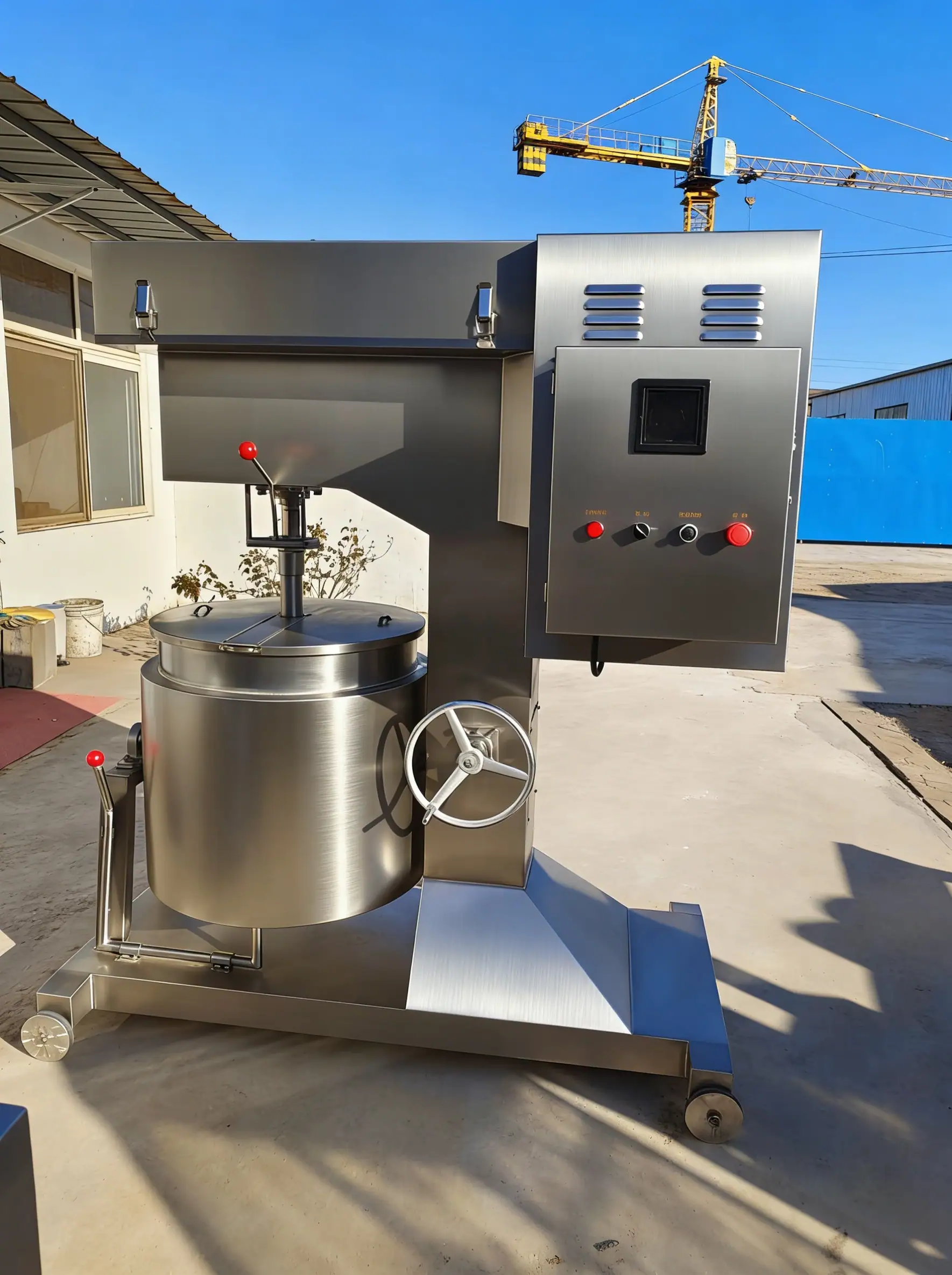

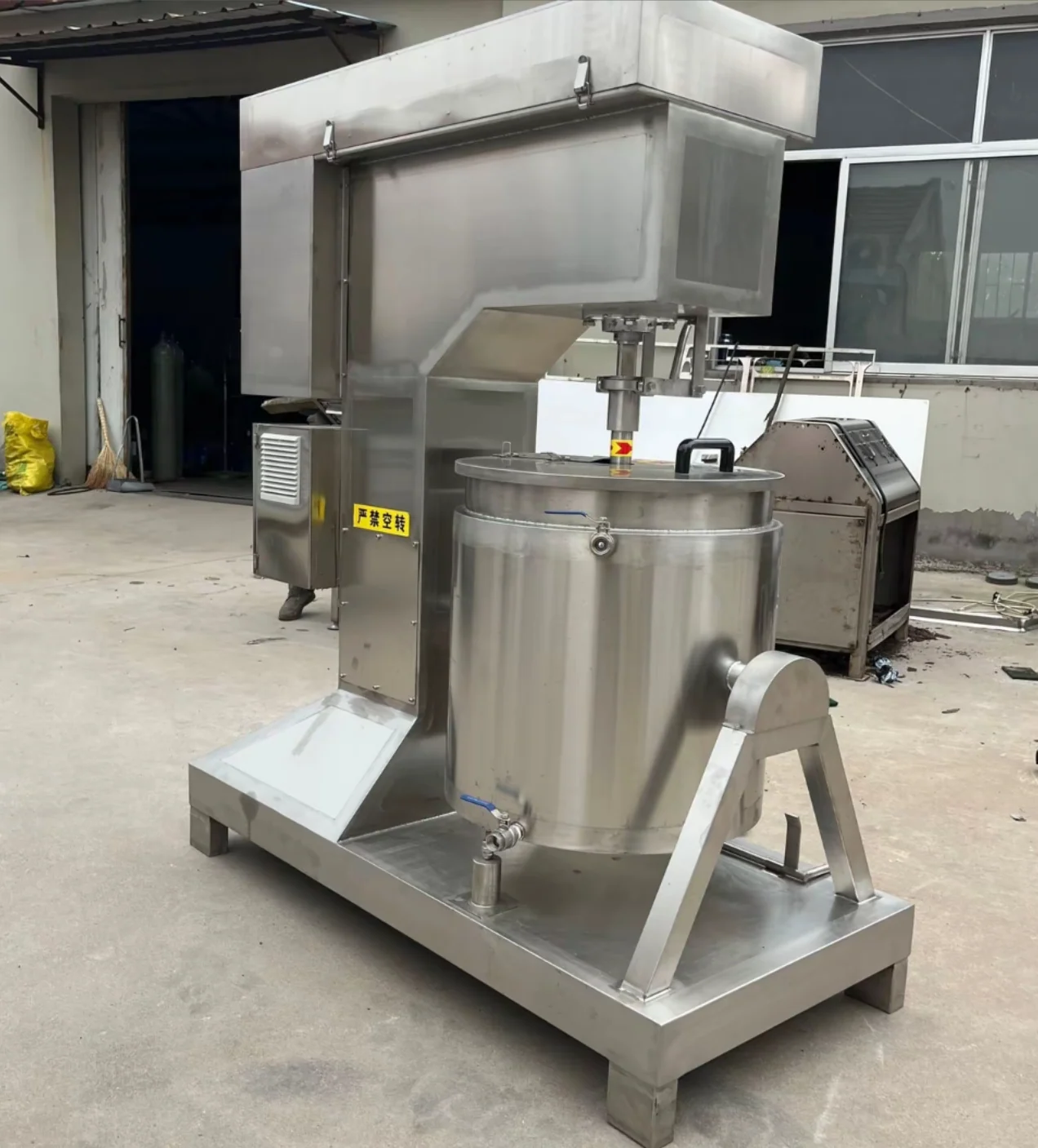

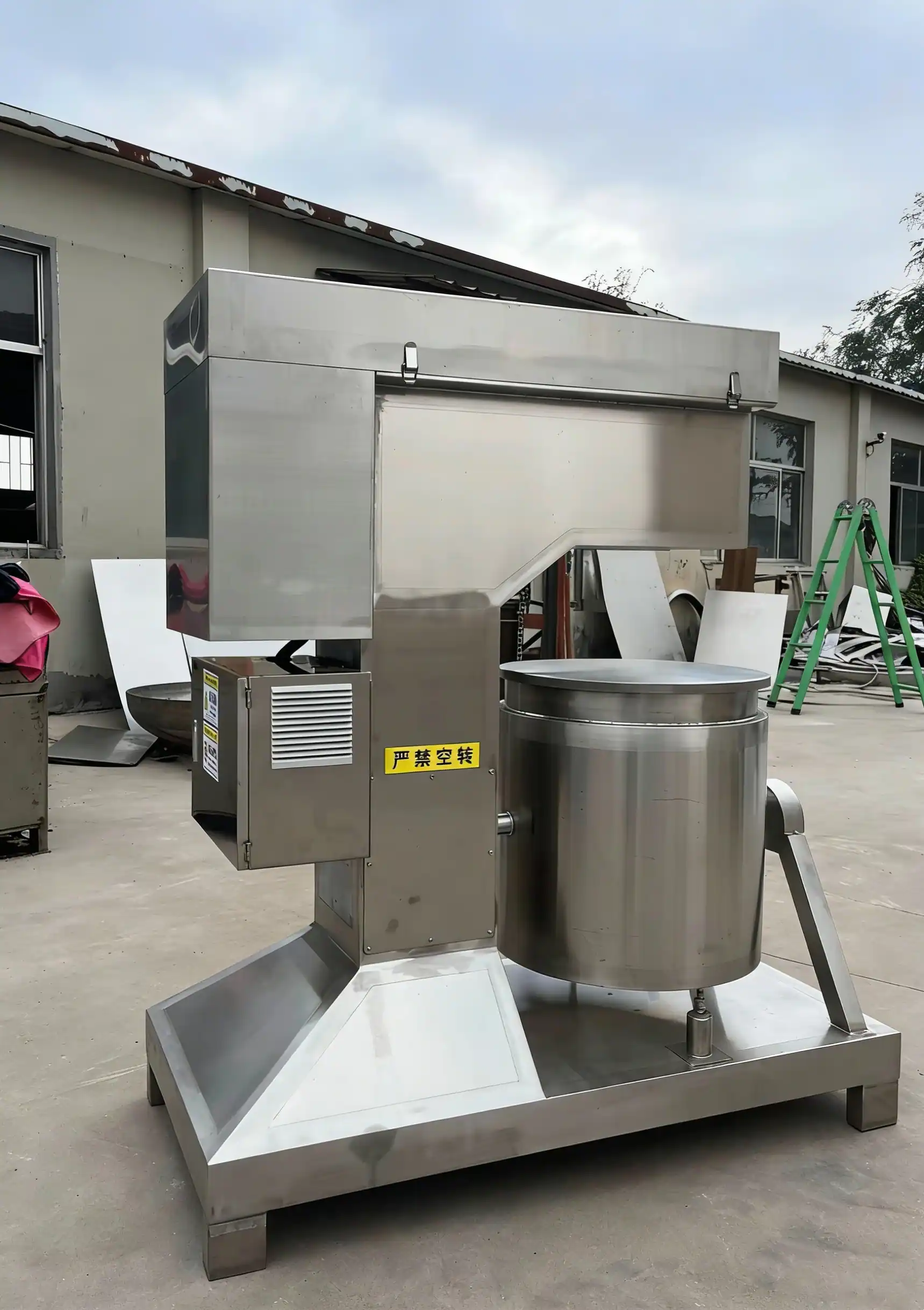

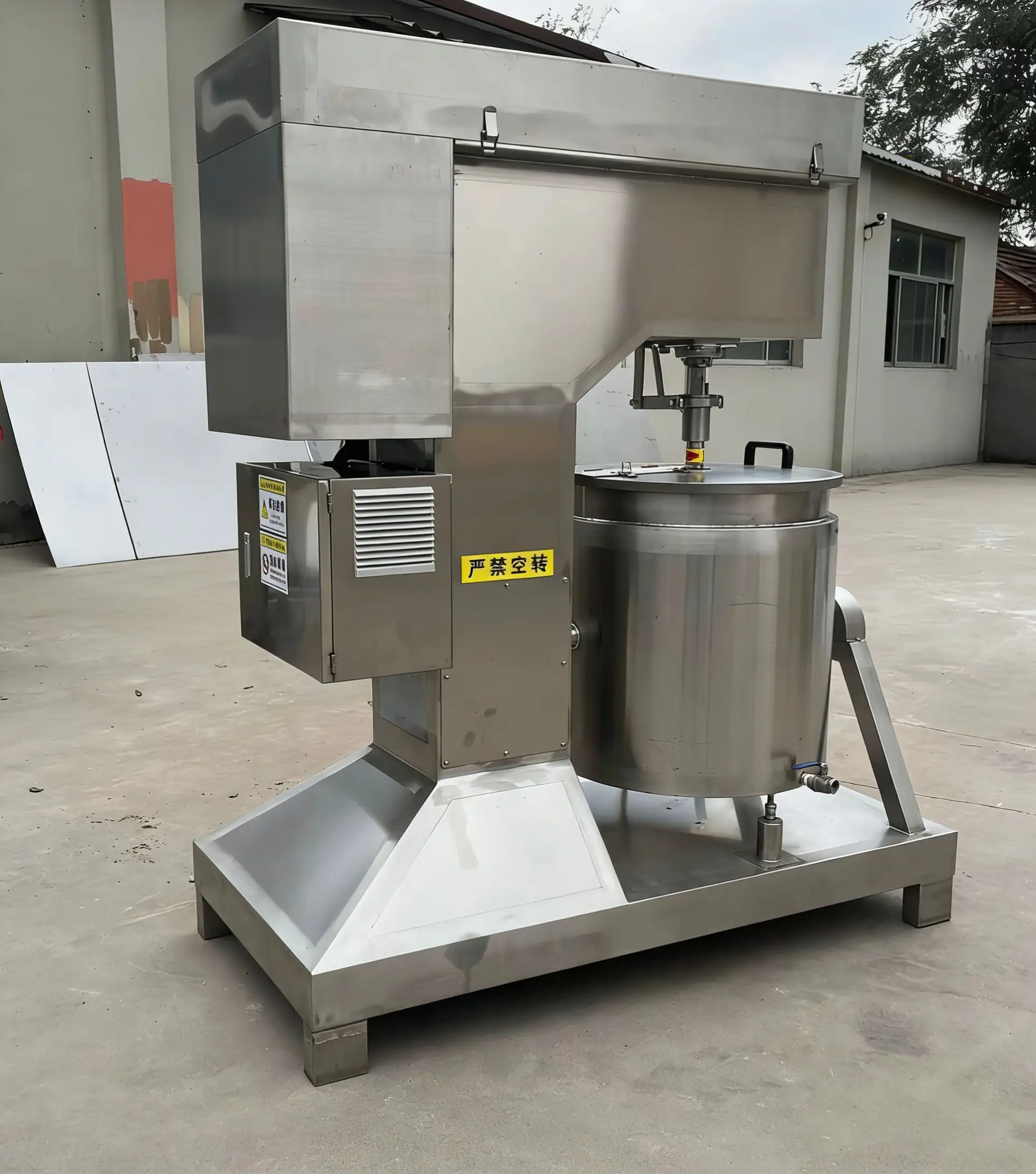

High Efficiency Heavy Duty Beef ball Meat Beater | Direct Factory Price

Stop watching your beef fat melt before it even hits the forming machine. A Heavy Duty Beef ball Meat Beater is a high-speed vertical emulsifier that uses blunt-force kinetic energy at 2880 RPM to smash meat fibers and extract myosin, creating a highly viscous meat paste. If you are running a Bakso Sapi (beef meatball) plant in Jakarta or Bandung, you know the exact nightmare I’m talking about. The 35°C ambient heat destroys your emulsion. The protein denatures. Your meatballs come out tasting like mushy dog food instead of having that signature bouncy, garing texture.

This machine fixes the temperature curve mechanically. Don’t believe the ads promising magic chemical additives. Good engineering is about raw RPM, blunt-force impact, and keeping the meat freezing cold during the beating cycle.

📊 Equipment Specifications: The Real Numbers

Before we talk about features, let’s look at the actual hardware. Here is the standard data for our MB-300 model, configured specifically for the Southeast Asian electrical grid.

Note: These parameters represent the true continuous running capacity. We don’t quote theoretical dry-run speeds that snap your drive belts.

⚙️ Core Engineering: Why Most Machines Fail in Indonesia

I’ve spent 20 years fixing meatball lines across Java and Sumatra. Most imported machines look beautiful in a showroom but destroy your yield in a real factory. Here is how we build them to survive.

The Truth About Myosin Extraction and Heat

Let’s talk about the emulsion breaking. When you beat 30kg of semi-frozen beef at 2880 RPM, the kinetic friction generates massive heat. Cheap beaters use single-wall barrels. When the meat temperature crosses 12°C, the fat separates. You get a greasy paste and flat meatballs.

We use a dual-layer dimple-jacketed barrel connected to a continuous ice-water circulation pump. You keep the meat temperature strictly under 8°C during the entire 4-minute cycle. The advantage? Maximum protein extraction. When processing premium beef for Bakso Urat, actual yield per batch went from 32 kg to 36.5 kg because the cold paste absorbed and held 15% more crushed ice water without breaking. It doesn’t sound like a massive leap on paper, but running 50 batches a day, you are yielding an extra 225 kg of premium Bakso from the exact same amount of raw meat. This is pure operational leverage.

The Washdown Trap

At the end of the day, if you don’t solve the bottom bearing seal issue, all that motor power is useless. When your sanitation team cleans the barrel at 2 AM, if they spray the high-pressure water gun at a 45-degree angle directly at the main agitator shaft seal, the food-grade grease washes out and beef blood seeps into the lower bearing. The bearing rusts and seizes in a month. We engineered a raised, shrouded labyrinth seal with a dedicated drainage weep hole. Water physically cannot reach the drive shaft bearings. ——these are the basic bottom lines in the 2026 industry standards.

🛠️ Industry Facts & The “Unspoken Rules”

Salesmen will hand you a list of generic features. I’m going to give you the engineering facts, along with the dirty little secrets of the meat processing floor.

• Fact: Solid 304 SS Blunt-Edge Beater Blades.
  • The Unspoken Rule: You don’t want sharp blades. Sharp blades cut the meat. You want blunt force to smash and stretch the muscle fibers to release the sticky myosin. If a salesman brags about “razor-sharp blades” on a meat beater, walk away. They are selling you a blender, not a beater.
• Fact: 11 kW Heavy-Duty Copper-Wound Motor.
  • The Unspoken Rule: Competitors use aluminum-wound motors to cut weight and cost. During the inevitable voltage drops in Indonesian industrial parks, aluminum motors overheat and burn out the stator mid-batch. We strictly use heavy-duty copper-wound motors with thermal overload relays.

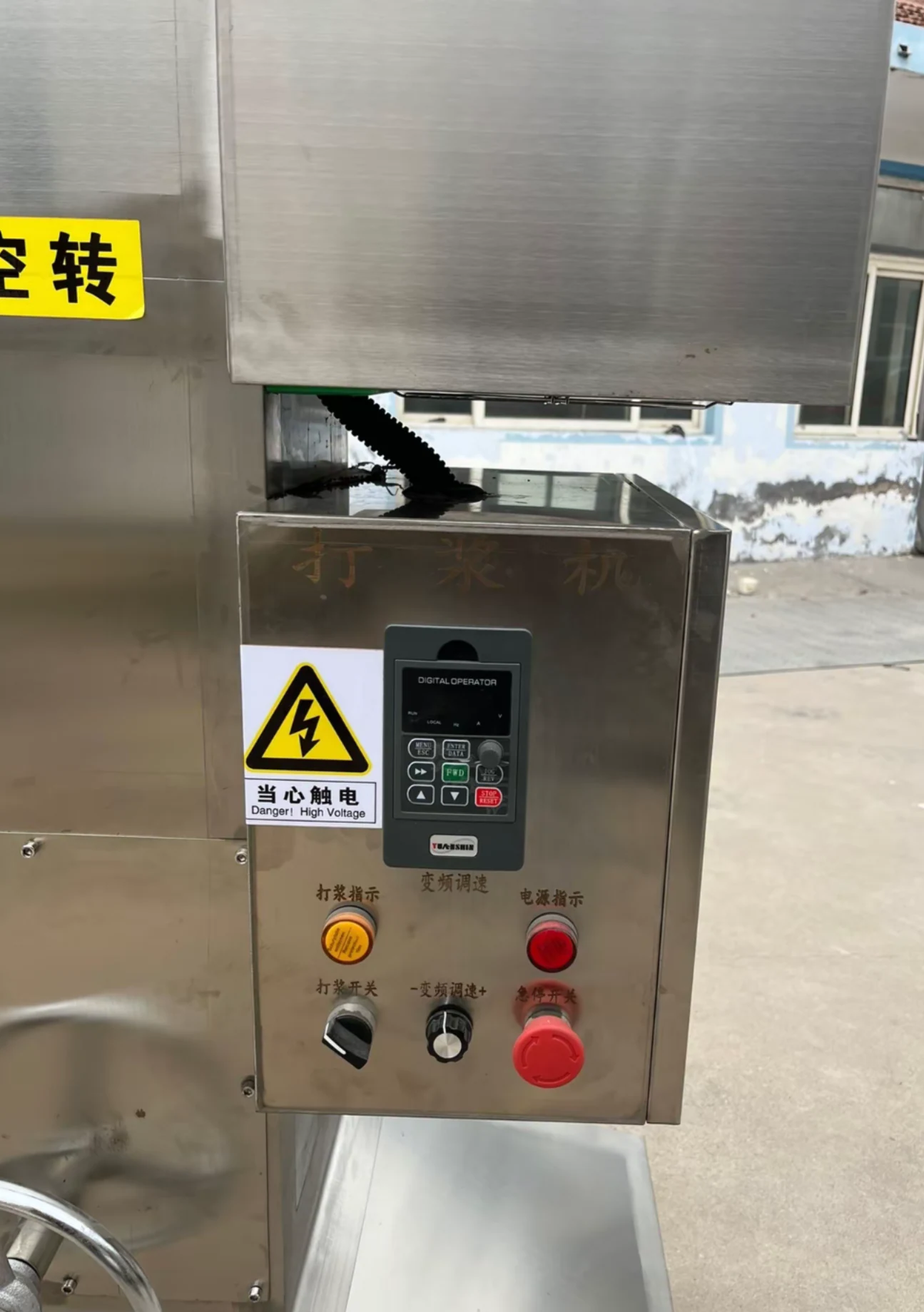

• Fact: Variable Frequency Drive (VFD) Speed Control.
  • The Unspoken Rule: Say it with me: if you start an 11 kW motor at full speed on a dead load of 40kg of semi-frozen beef, you will snap the drive belts within a week. We use a VFD for a soft start, ramping up to 2880 RPM smoothly to protect the transmission.

❓ FAQ: What Factory Owners Actually Ask Me

1. How hard is it to unload the sticky meat paste?

It takes one operator about 15 seconds. The machine features a mechanical tilt-discharge mechanism. You don’t need to scoop it out by hand. If a machine requires your workers to bend over and scrape 40kg of sticky paste out of a fixed barrel, they will leave 5% of your product behind every single batch.

2. Can it handle tough tendons for Bakso Urat?

Yes. The blunt-force impact at 2880 RPM is designed to pulverize connective tissue and tendons without completely liquefying them, giving you that authentic, coarse, crunchy texture that Indonesian consumers demand for Bakso Kasar or Bakso Urat.

3. What happens when a drive belt snaps?

We use standard B-type industrial V-belts. You can buy replacements in any major industrial hardware market in Jakarta (like Glodok) or Surabaya. You are never held hostage waiting for proprietary transmission parts to be shipped from overseas.
