Stop blaming your slicer.
Seriously. Last week, I visited a meat processing plant in Rayong that supplies a major “Mookata” chain. They were complaining that their frozen beef rolls were crumbling into fragments when sliced. They wanted to buy a more expensive German slicer.
I told them: “Save your money. Your problem isn’t the blade; it’s the air pockets.”
If you are producing frozen beef/lamb rolls for Hotpot, BBQ, or “Lau” restaurants, the money is made in the density of the meat log. If there is air inside, the ice crystals form in the gaps, and the slice shatters.
You need a production line that forces the meat together, seals it tight, and vacuums it fast. That is exactly what this Liangcai trio (Filler, Clipper, Vacuum) does.

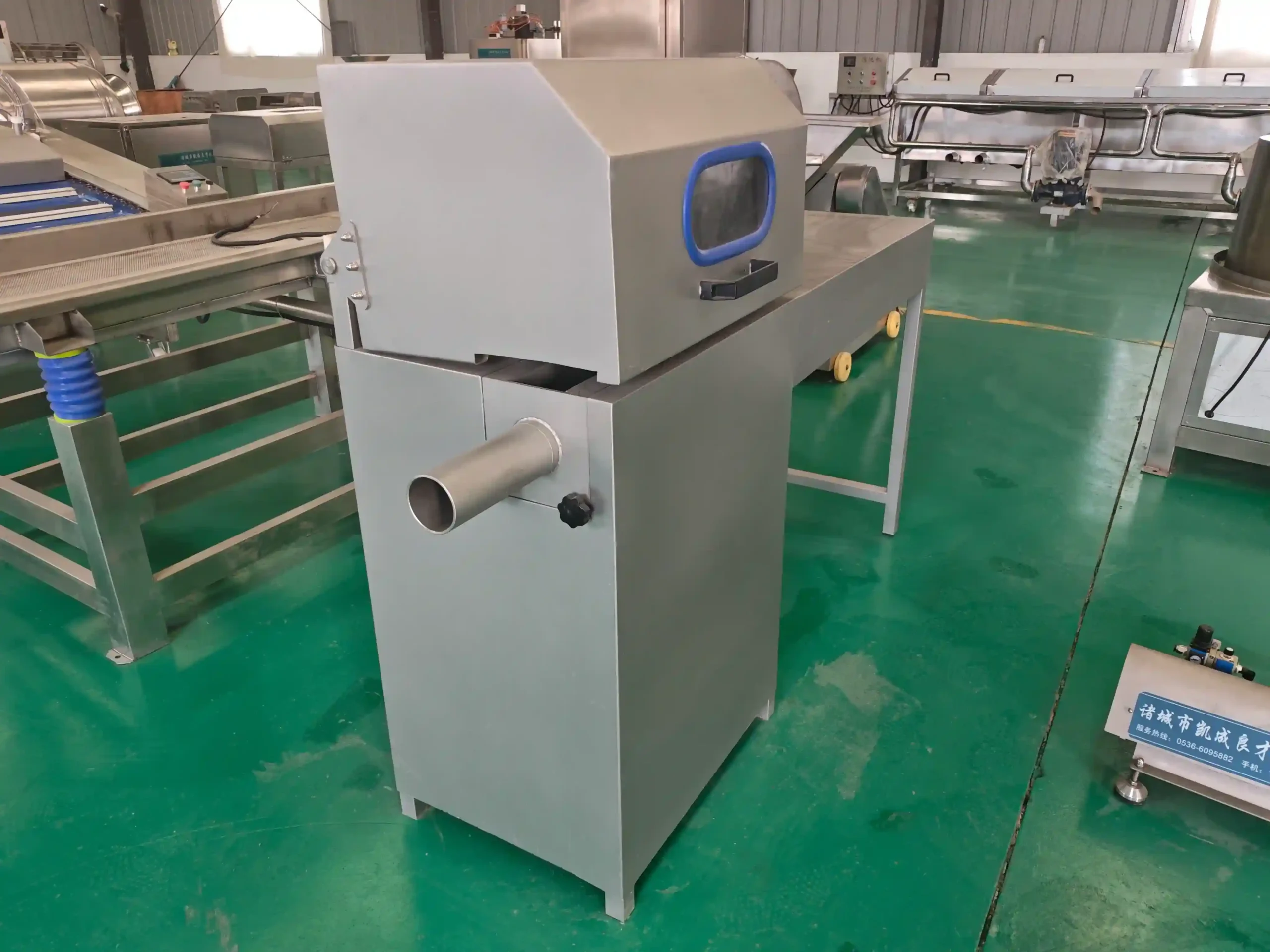

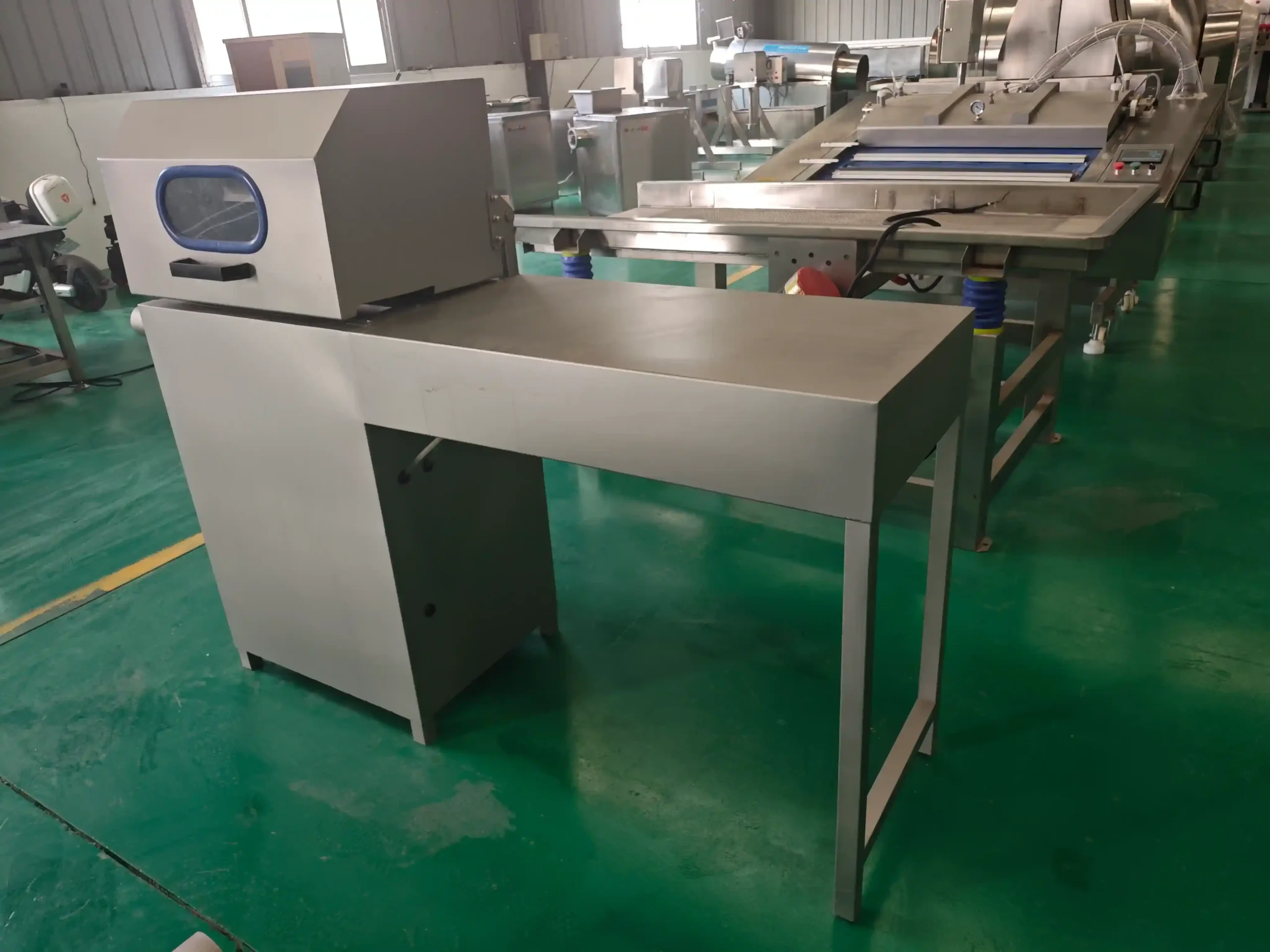

Stop losing your profit margin to inconsistent manual stuffing and cheap extruders that smear your fat content. If you are running a food processing plant in Southeast Asia, you already know the nightmare of trying to maintain uniform density for Moo Yor (Thai pork roll) or Rolade Daging (Indonesian meat roll) when the factory floor hits 35°C with 85% humidity. You need a Meat Roll Stuffing Machine that doesn’t just blindly push meat into a casing. It needs to control the extrusion pressure precisely to prevent emulsion breakdown. This isn’t about having shiny equipment. It’s about raw yield.
Definition: A pneumatic-driven, volumetric extrusion system designed to stuff highly viscous, emulsified meat pastes into artificial or natural casings, minimizing air entrapment while strictly controlling temperature rise during the filling process.
| Specification | Technical Parameter | Real-World Application |
|---|---|---|
| Model | SN-RD-TC | Standardized for SEA medium-to-large plants. |
| Dimensions | 1870 × 580 × 1400 mm | Vertical footprint saves wet-floor space. |
| Meat Plate Size | 1000 × 520 mm | Accommodates standard 200L meat buggies. |
| Filling Diameter | 80 – 120 mm | Perfect for standard commercial meat rolls. |
| Hopper Length | 600 mm | Optimized to prevent meat paste bridging. |
| Working Pressure | 0.5 MPa | Constant pneumatic force; requires standard air compressor. |
| Voltage/Power | 220V/380V 50Hz, 1.5 kW | Configured for local Southeast Asian grid stability. |
| Weight | 160 kg | Heavy-duty chassis dampens extrusion vibration. |
Most suppliers will try to sell you on motor size. At the end of the day, if you don’t solve the hopper bridging issue, all the power in the world is useless. The SN-RD-TC utilizes a steady 0.5 MPa working pressure combined with a 600 mm hopper length. The Advantage: It forces the meat paste down evenly without overworking the proteins. We keep the meat temperature rise strictly under 3°C during extrusion—which, in 2026 industry standards, is the absolute baseline. The Benefit (Your Profit): No fat separation. Your Chả Lụa (Vietnamese sausage) keeps its snappy texture, and you eliminate the porous, spongy rejects that get thrown out at QC.
Southeast Asian factories are brutal on machinery. High heat, constant moisture, and aggressive cleaning chemicals will eat cheap alloys alive. The Advantage: We built this 160 kg beast entirely out of 304 stainless steel, specifically treating the weld seams to resist chloride stress corrosion. The Benefit (Your Profit): Less downtime. Here is a dirty little secret: when operators wash down the hopper, if they blast the pneumatic cylinder seals at a 45-degree angle with a high-pressure water gun, standard O-rings degrade twice as fast. We shrouded the critical pneumatic components. You won’t be replacing seals every two weeks just because your night shift got aggressive with the hose.
The Advantage: Swapping out the filling horns takes less than two minutes. The Benefit (Your Profit): Equipment reps love throwing around fake numbers like “30% efficiency gains.” Ignore them. Look at the reality. When processing semi-frozen chicken emulsion for Rolade Daging, actual throughput on this unit goes from 1.2 tons per hour (on manual/semi-auto setups) to 1.55 tons. It doesn’t sound like a massive revolution. But run that across a double shift, and you’re squeezing out an extra 5 tons of sellable product a month. That pays for the machine.
Q: Will this machine handle highly sticky pastes like Thai fish cake (Tod Mun Pla) without jamming? Yes. The 1000×520 mm meat plate and the 600 mm hopper are geometrically angled to feed sticky, high-myosin pastes. As long as you maintain the 0.5 MPa air pressure, it will not bridge or jam.
Q: How hard is it to source replacement parts in Indonesia or Vietnam? We don’t use proprietary, locked-down electronics. The pneumatic valves and standard 1.5 kW motors are universal. You can source replacements from our local SEA distributors within 24 hours, or even find compatible industrial pneumatics at your local hardware supplier in a pinch.
Q: Is it difficult to clean the extrusion pipeline? No. The entire filling head detaches with two quick-release clamps. You can run a standard pipe brush straight through the 80-120 mm nozzle. Just remember the golden rule: don’t point the high-pressure nozzle directly into the pneumatic exhaust ports.
