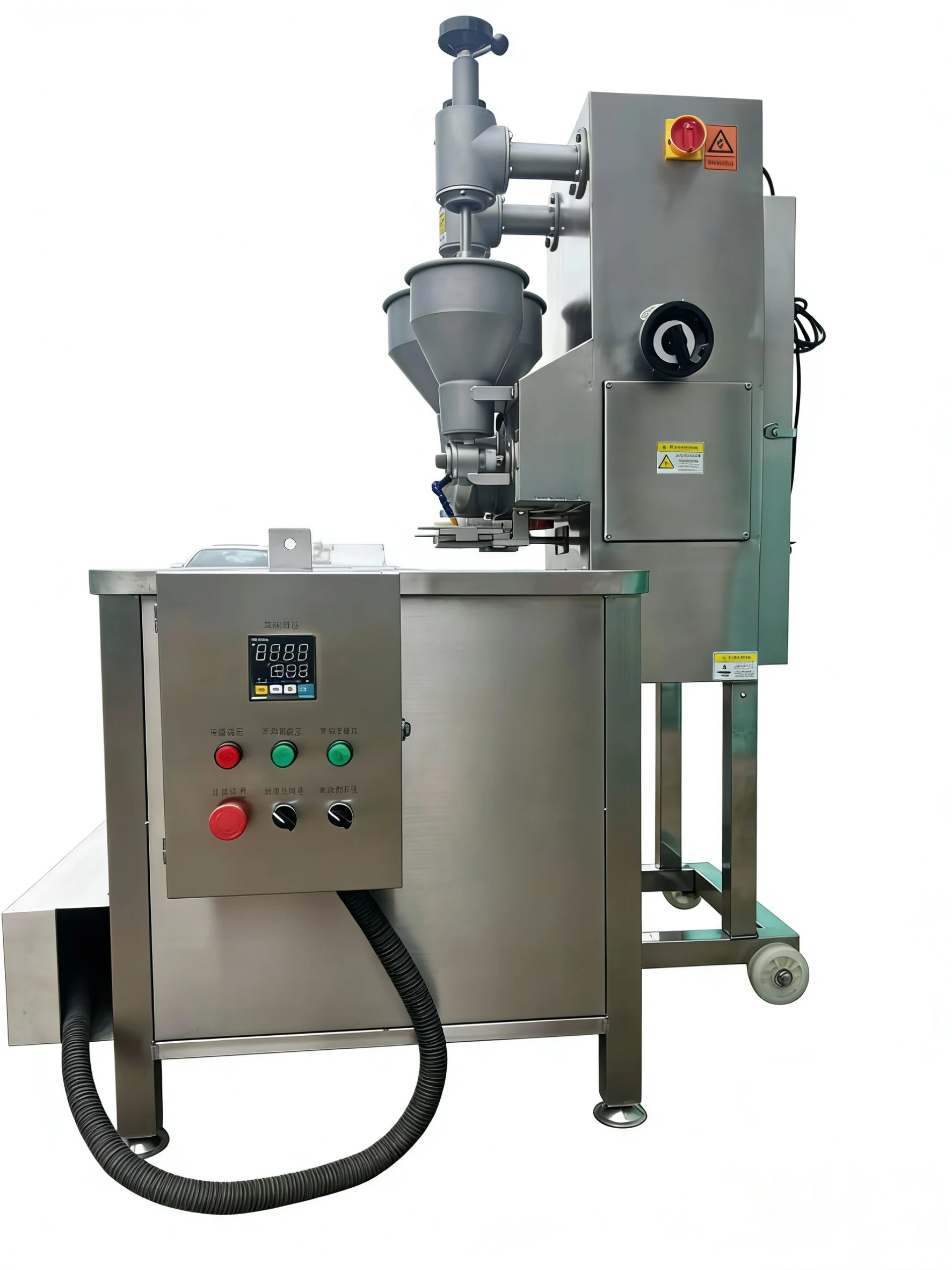

High Efficiency Commercial Stuffed Fishball Making Machine | Direct Factory Price

Stop blaming your floor workers when the minced meat filling leaks out of the surimi casing in the boiling tank. A Commercial Stuffed Fishball Making Machine is a dual-extrusion forming system that simultaneously pumps an outer paste (surimi/meat) and an inner filling through a concentric nozzle, shearing them into perfectly sealed, spherical balls. If you are running a Fuzhou Fishball or Bakso Isi line in Penang or Surabaya, you know the daily struggle. The 32°C ambient factory heat degrades your surimi’s gel strength. The filling shifts off-center. Your reject rate skyrockets.

This machine fixes the centering issue mechanically. Don’t believe the glossy brochures promising magic. Good engineering is about fluid dynamics, pressure equalization in the extrusion head, and keeping the meat cold.

📊 Equipment Specifications: The Real Numbers

Before we talk about features, let’s look at the actual hardware. Here is the standard data for our SBM-300 model, configured specifically for the Southeast Asian electrical grid.

Note: These parameters represent the true continuous running capacity. We don’t quote theoretical dry-run speeds that snap your drive chains.

⚙️ Core Engineering: Why Most Machines Fail in Malaysia

I’ve spent 20 years fixing meatball lines across Johor and Selangor. Most imported machines look beautiful in a showroom but destroy your yield in a real factory. Here is how we build them to survive.

Auger Pitch Optimization and Centering

Let’s talk about off-center fillings. When you pump sticky minced pork into a fish paste casing, the pressures must be identical. Cheap machines use a single motor with a mechanical splitter. When the surimi gets warm, the viscosity drops, the pressure changes, and the filling blows out the side.

We use dual independent Variable Frequency Drives (VFDs) with optimized auger pitches. You dial in the exact extrusion speed for the casing and the filling independently. The advantage? You get a mathematically perfect concentric extrusion. When running high-viscosity surimi for Fuzhou fishballs, actual output went from 180 pcs/min to 238 pcs/min. It doesn’t sound like a massive leap on paper, but in a double-shift operation, you are saving 55,680 perfectly sealed balls a day. This is pure operational leverage.

The Washdown Trap

At the end of the day, if you don’t solve the hopper base seal issue, all that VFD precision is useless. When your sanitation team cleans the hoppers at 2 AM, if they spray the high-pressure water gun at a 45-degree angle directly at the auger base, the food-grade grease washes out and saltwater enters the gearbox. The gears rust and seize in a month. We engineered an umbrella-style shrouded deflector plate under the hopper. Water physically cannot reach the drive shaft seals. ——these are the basic bottom lines in the 2026 industry standards.

🛠️ Industry Facts & The “Unspoken Rules”

Salesmen will hand you a list of generic features. I’m going to give you the engineering facts, along with the dirty little secrets of the food processing floor.

• Fact: Fully constructed from SUS304 Stainless Steel.
  • The Unspoken Rule: Competitors will use 304 for the outer body, but sneak in 201 stainless steel for the internal auger shafts to cut costs. 201 SS will pit and rust within three weeks when exposed to the high salt content of fish paste. We use 304 SS for every single contact part.
• Fact: Micro-drip water ring for the cutting mold.
  • The Unspoken Rule: If the copper-alloy shearing mold isn’t constantly lubricated, the surimi sticks, and the machine produces “tailed” fishballs instead of perfect spheres. Our integrated water ring ensures a continuous microscopic water film on the blades.
• Fact: Independent gear pump for the filling hopper.
  • The Unspoken Rule: Say it with me: at the end of the day, if you don’t solve the hopper bridging issue with sticky minced pork, all that motor power is useless. We use a positive displacement gear pump to force the filling down, eliminating air pockets.

❓ FAQ: What Factory Owners Actually Ask Me

1. How long does it take to change the fishball size?

It takes one operator exactly 10 minutes. You unscrew the concentric nozzle and swap the cutting mold. You don’t need a mechanic. If a machine requires recalibrating the whole drive system just to change from a 25g ball to a 35g ball, your production manager will simply refuse to run mixed orders.

2. Can it handle liquid fillings like soup or cheese?

Yes, but with strict temperature controls. If you are making cheese-stuffed meatballs, the cheese must be chilled to a highly viscous paste. If the filling is too liquid at room temperature, it will bypass the gear pump. For liquid soup fillings, the filling must be semi-frozen before loading into the hopper.

3. What happens when a VFD or contactor fails?

We use standard international components: Omron VFDs and Schneider electrics. You can buy replacements in any major industrial hardware market in Kuala Lumpur or Penang. You are never held hostage waiting for proprietary circuit boards to be shipped from overseas.
