1. The “Dead Zone” Killer: 3D Heat Circulation

±1.5°C Uniformity. No More Burnt Edges.

Most “convection” ovens sold in this region are just a box with a fan in the back. The air hits the first tray and stops. The result? The front is raw, the back is burnt.

The RHO Difference:

• Centrifugal Fan Tech:We don’t use weak axial fans. We use a high-pressure centrifugal system that forces air sideways through the rack.
• The Rotation:The trolley hooks onto the top drive and spins at 3-10 RPM. Every single cookie, every piece of Moo Grob (Crispy Pork), passes through the exact same heat zone.
• The Result:You set the PID controller to 180°C. The top corner is 180.5°C. The bottom center is 179.5°C.

• Real World Impact:For a dried mango factory, this means you don’t get “wet centers” that grow mold inside the package two weeks later.



2. Built for the Tropics: Insulation & Humidity Control

Keep the Heat Inside, Not in Your Factory.

In a factory in Jakarta, it’s already 35°C outside. If your oven leaks heat, your workers will quit.

• Thermal Break:We use high-density rock wool insulation between the SUS304 inner chamber and the Carbon Steel exterior. You can touch the outside wall while it’s running at 250°C, and it won’t burn your hand.
• Steam Injection (The Bánh Mì Secret):You cannot make a crispy baguette without steam. The RHO series has a programmable moisture injection system. It blasts steam for the first 30 seconds to gelatinize the starch on the crust.

• The Engineer’s Note:If you are using local tap water in Thailand or Vietnam, install a water softener. Our steam nozzles are precise, but calcium buildup (limescale) will clog them in 6 months if you ignore water quality.

📊 Technical Specifications: The Honest Numbers

Don’t just look at the “Liters.” Look at the Tray Capacity. That determines your profit per hour.

Model	Capacity (Trays)	Heating Power (kW)	Real Production (Example)	Best For…
RHO-300	12 Trays	15 kW	40kg Dried Fruit / batch	Boutique Bakeries / R&D Labs
RHO-600	24 Trays	22 kW	800 Bánh Mì / hour	Standard Commercial Bakery
RHO-1000	36 Trays	38 kW	250kg Roasted Pork / batch	Industrial Export Factories

The “Digital Trap”:Competitors will tell you their oven saves “50% energy.” That is marketing fluff.The Reality: Our Heat Recovery system recycles about 35-45% of the exhaust heat. In a facility running 16 hours a day, this drops your electricity cost per kg from $0.35 to roughly $0.18. It doesn’t sound sexy, but that saves you the price of a new pickup truck every year.

⚠️ Maintenance: The “Unspoken” Rules

I’m going to be blunt. These machines are workhorses, but they have weak points if you abuse them.

1. The Door Seal:This is silicone. If your workers slam the door while the trolley is not fully pushed in, the metal rack will slice the gasket. A torn gasket = heat leak = uneven baking. Train your staff to push the rack all the way until it clicks.
2. The Top Hook:The rotation mechanism is on the roof. Every month, you need to climb up there and grease the bearing. If you hear a “clunk-clunk” sound, the bearing is dry. Ignore it, and the motor burns out.
3. The Cool Down:Never turn the main power switch off immediately after baking at 250°C. The fan needs to run for 15 minutes to cool the heating elements. If you cut power hot, the residual heat warps the steel chamber.——This is the standard operating procedure for 2026 longevity.

❓ FAQ: Questions Factory Owners Ask Me

Q: Can I use this for drying meat (Jerky/Dendeng)?A: Yes, but you need the “Dehydration Mode.” We adjust the airflow dampers to vent moisture out faster. If you bake jerky like bread, you just steam the meat. Tell us your product before you order so we calibrate the dampers.

Q: Electric vs. Gas? Which is better for Southeast Asia?A: If you are in Vietnam or Indonesia, Gas (LPG) is usually cheaper to run. The RHO series can be fitted with a Riello (Italian) gas burner. If you are in a mall in Bangkok where gas is banned, stick to the Electric version (380V).

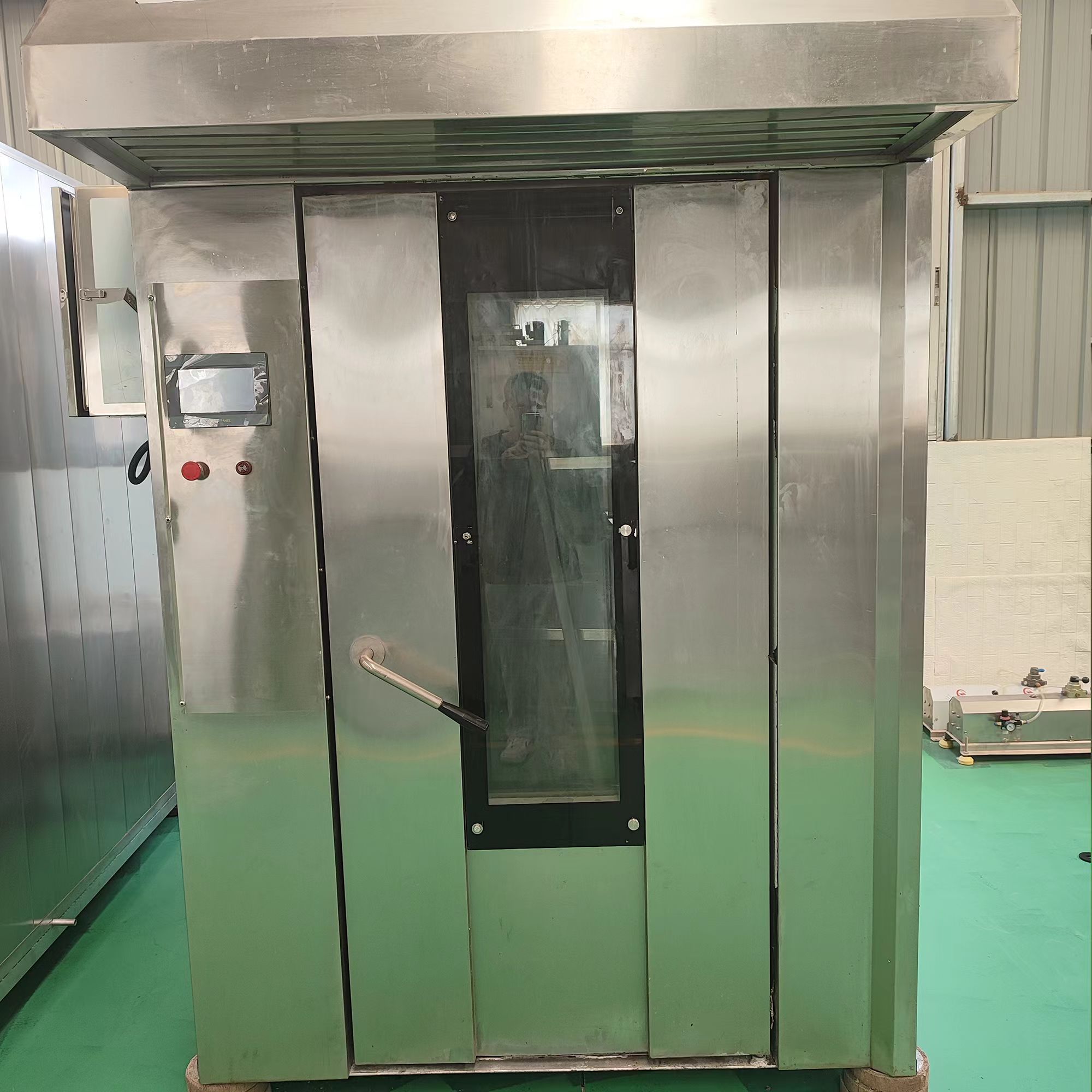

Q: Does the trolley come out?A: Yes. This is a “Rack Oven.” You load the trays onto a trolley in your prep area, roll the whole trolley into the oven, and roll it out when done. No loading individual trays into a hot oven.

Q: How do I clean the inside?A: The floor is sloped with a central drain. You can use a foam sprayer and a hose (low pressure). Do not spray the control panel. It is IP54, not waterproof.
