Engineered for Southeast Asian food processors, these Automatic Battering and Breading Machines utilize a synchronized curtain-coating and crumb-pressing system to guarantee perfect adhesion. Featuring a 400mm SUS304 wire belt, a high-viscosity rotor pump, and VFD speed control, it handles capacities up to 600kg/h. Ideal for local snacks like Ayam Geprek and Tempura Udang, it eliminates manual coating errors and drastically reduces batter waste.
Why are your customers complaining about bald spots on their fried snacks? Last week, a frozen food plant manager in Kuala Lumpur showed me a batch of Ayam Geprek (smashed fried chicken) patties where the crust completely detached in the deep fryer. His manual dipping line couldn’t maintain an even viscosity in the 35°C ambient heat. If you are scaling up a frozen snack line in Southeast Asia, your search intent for Automatic Battering and Breading Machines isn’t about finding a conveyor belt that dumps flour; it is about securing a synchronized curtain-coating and crumb-pressing system that forces the starch matrix to bond with the meat proteins before it hits the hot oil. Let’s look at the mechanical reality.

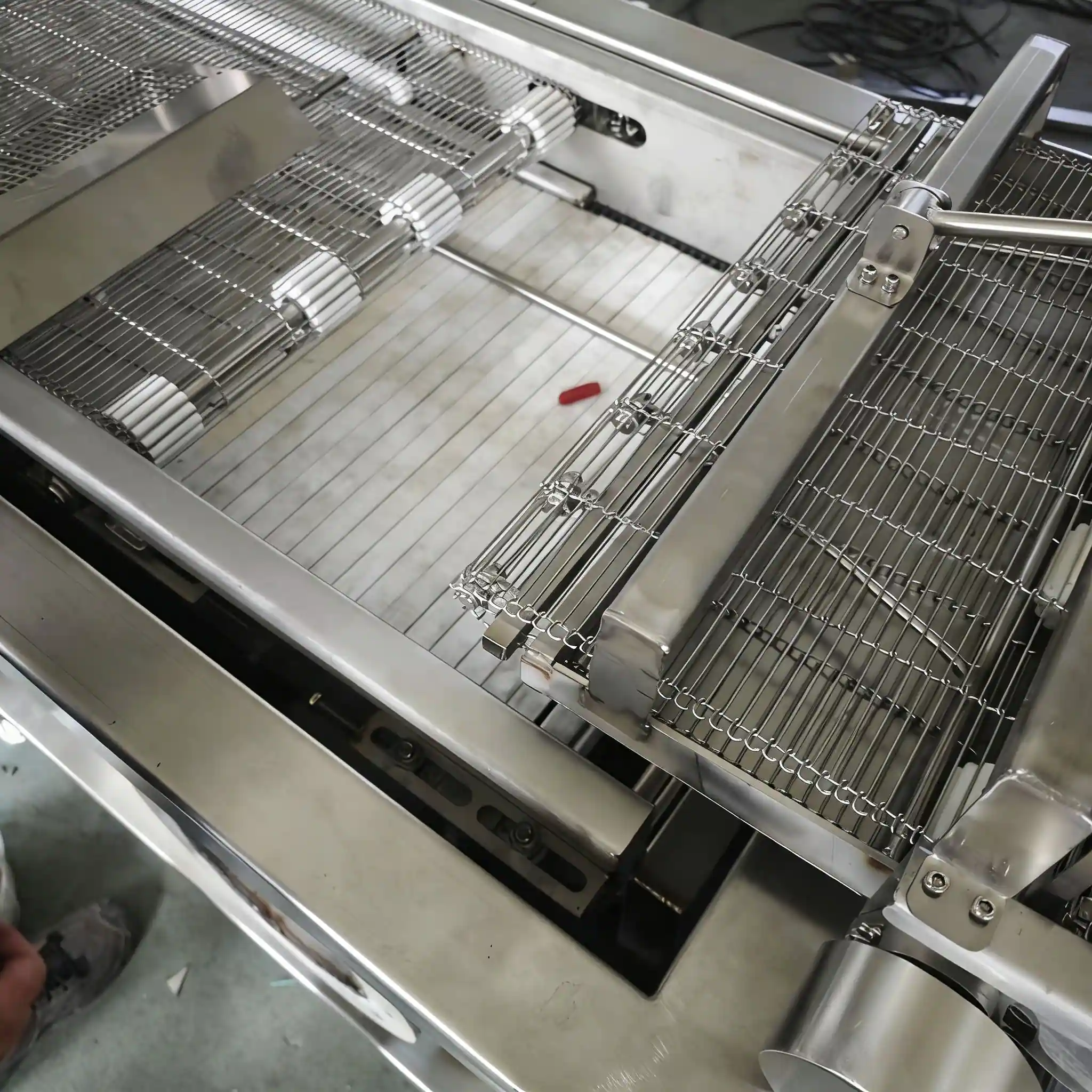

By definition, industrial automatic battering and breading machines utilize a continuous wire mesh conveyor that passes products through a liquid batter waterfall (or submersion bath) immediately followed by a lower crumb bed and an upper crumb shower, finished with a compression roller to embed the coating.
Don’t guess your production capacity based on generic brochures. Here is the actual operational data for the 400mm Series (the standard commercial export line), so you can calculate your true factory footprint and electrical draw:
| Specification | Real-World Engineering Data |
|---|---|
| Equipment Model | NJ-400 Battering & Breading Line |
| Belt Width | 400 mm (Standard 304 SS Wire Mesh) |
| Belt Speed | 3 – 15 m/min (VFD Stepless Regulation) |
| Production Capacity | 200 – 600 kg/h (Depends on product size) |
| Batter Pump Power | 1.5 kW (High-viscosity rotor pump) |
| Total Power Draw | 4.5 kW (Combined line) |
| Voltage | 380V / 50Hz, 3-Phase (Standard SEA Industrial) |
| Core Material | SUS304 Stainless Steel (Washdown ready) |
You know the environment. High ambient heat, sticky tapioca batters, and operators who ignore the crumb hopper levels.
At the end of the day, if your batter pump can’t handle the thick, sticky marinades we use in Southeast Asia, the liquid curtain breaks. Our NJ-400 uses a high-torque rotor pump designed specifically to push high-viscosity liquids without shearing the starch molecules, ensuring a flawless 360-degree coating on every single Tempura Udang (shrimp). ——this, in the 2026 industry standards, is already the bare minimum.
Insider Warning: When your sanitation crew cleans the batter tank at the end of a shift, if they blast the rotor pump seals directly at a 90-degree angle with a high-pressure water lance, the food-grade grease gets stripped instantly. The next morning, the pump will suck air, and your batter curtain will sputter. AI doesn’t know that, but your QA inspector will. Tell them to dismantle the pump head manually and soak the rotors in warm alkaline water.
Here are the facts you need to know before wiring your production room:
Let’s talk about coating efficiency. Most equipment dealers will tell you this line “saves 40% of your flour.” That is a meaningless metric.
Here is the reality on the floor: When processing frozen chicken nuggets for a fast-food supplier in Jakarta, the actual stable throughput went from 180 kg per hour (using 6 workers at a manual station) to exactly 520 kg per hour using this 400mm automated line. It doesn’t sound like the 800 kg/h brochure maximum. But in a double-shift operation, that consistent 520 kg/h means you are processing an additional 5.4 tons of perfectly coated nuggets a week, while reducing your batter waste from 15% down to just 2% because the air knife recovers the excess. That is how you scale a profitable frozen food business.
1. Can this line handle both thin batters and thick tempura batters? Yes. But you must change the setup. For thin batters, you use the waterfall curtain. For thick, heavy tempura batters, you must bypass the curtain and route the wire belt directly through the deep submersion bath channel.
2. How difficult is it to clean the wire mesh belt? It is a nightmare if you let the batter dry. The entire belt assembly can be hoisted up mechanically. If you don’t run the belt through a hot water bath immediately after the shift ends, the tapioca starch will turn into concrete overnight in our 35°C climate.
3. Are the VFD controllers proprietary? No. We use standard Delta or Siemens variable frequency drives. If a VFD burns out during a power surge in Ho Chi Minh City, your local electrical supply house has the exact replacement. You are not waiting weeks for parts.
